The Brookvent NOX100 is a clean air solution which is designed to work perfectly, hand-in-hand, with Mechanical Ventilation Heat Recovery (MVHR) or Mechanical Extract Ventilation (MEV) units. The NOX has been specifically designed to filter out harmful nitrogen dioxide and particulates from the outdoor air, when these locations contain nitrogen dioxide and particulates at over the target levels. This nitrogen dioxide mitigation solution works to filter polluted air upon entry, in both domestic and commercial buildings. A compact system, the NOX100 makes air cleaner and safer to breathe.

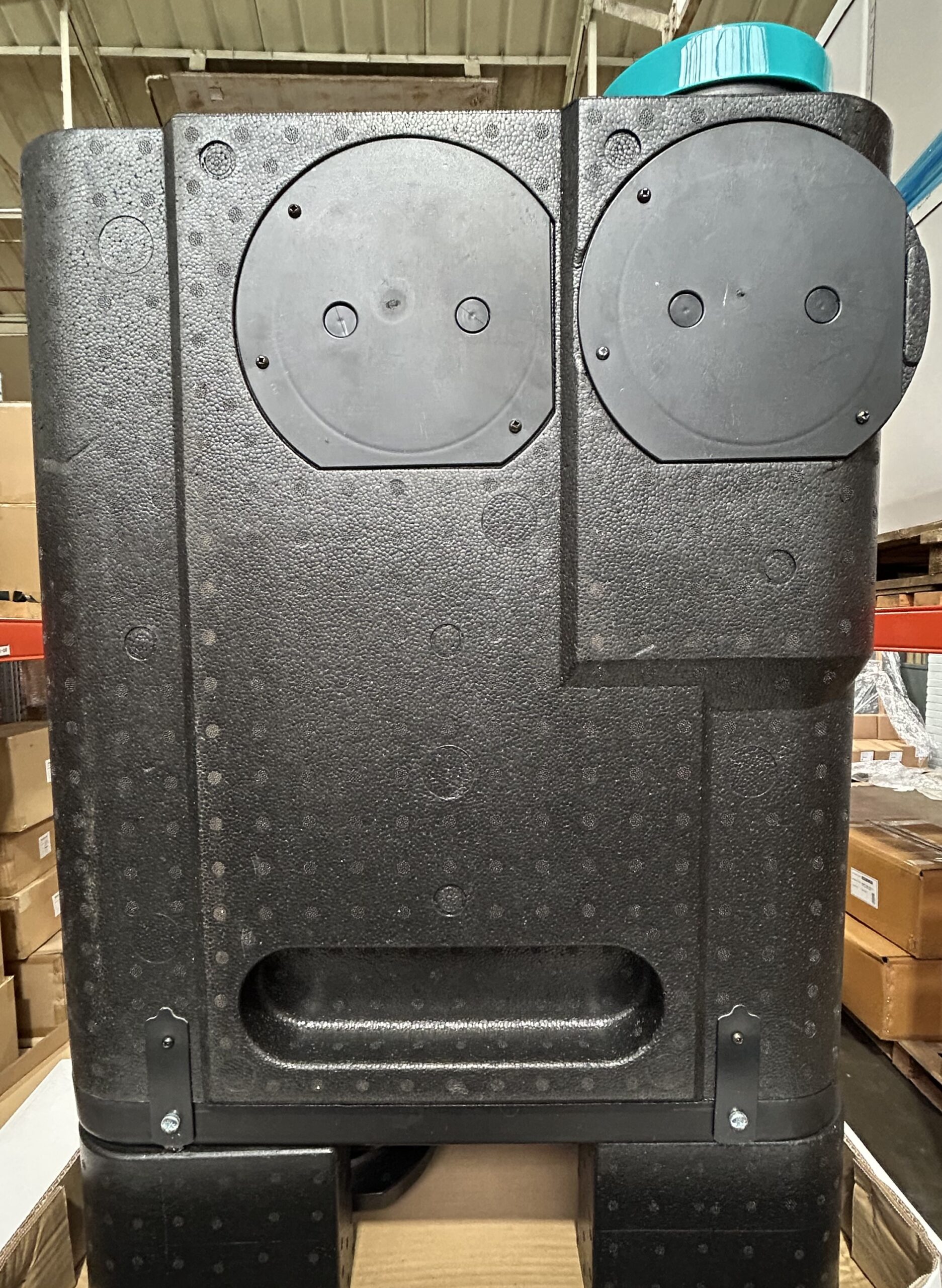

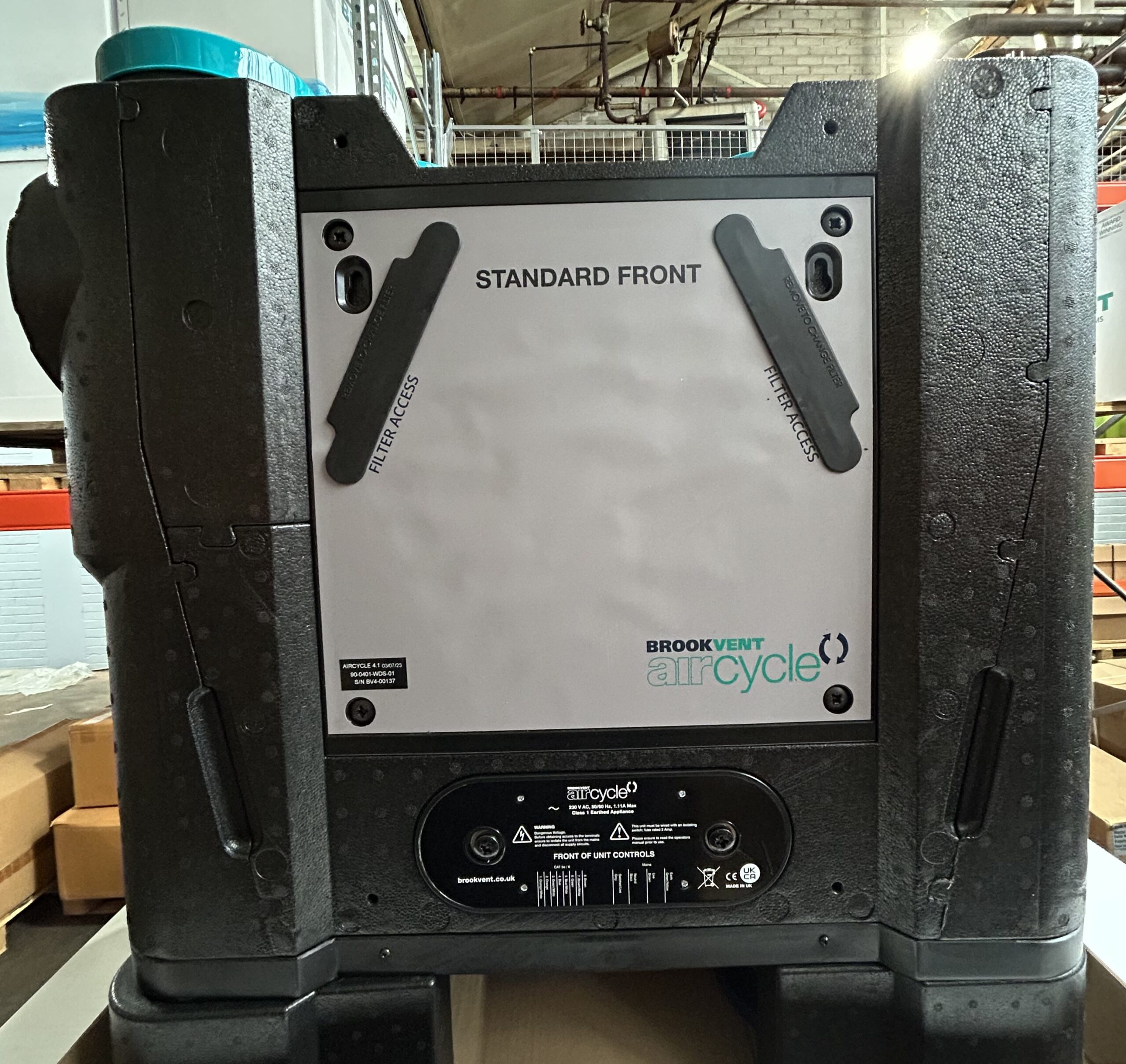

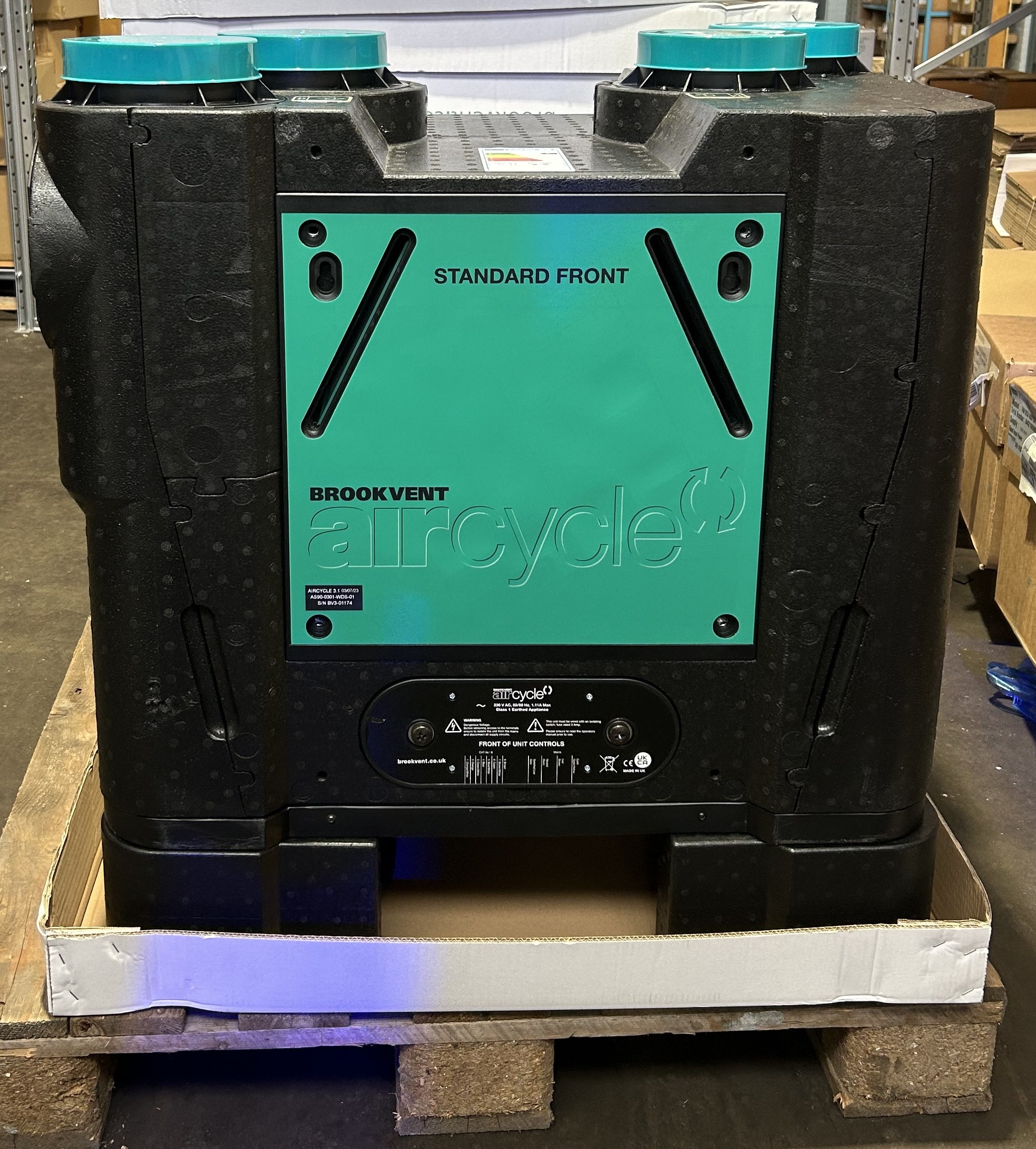

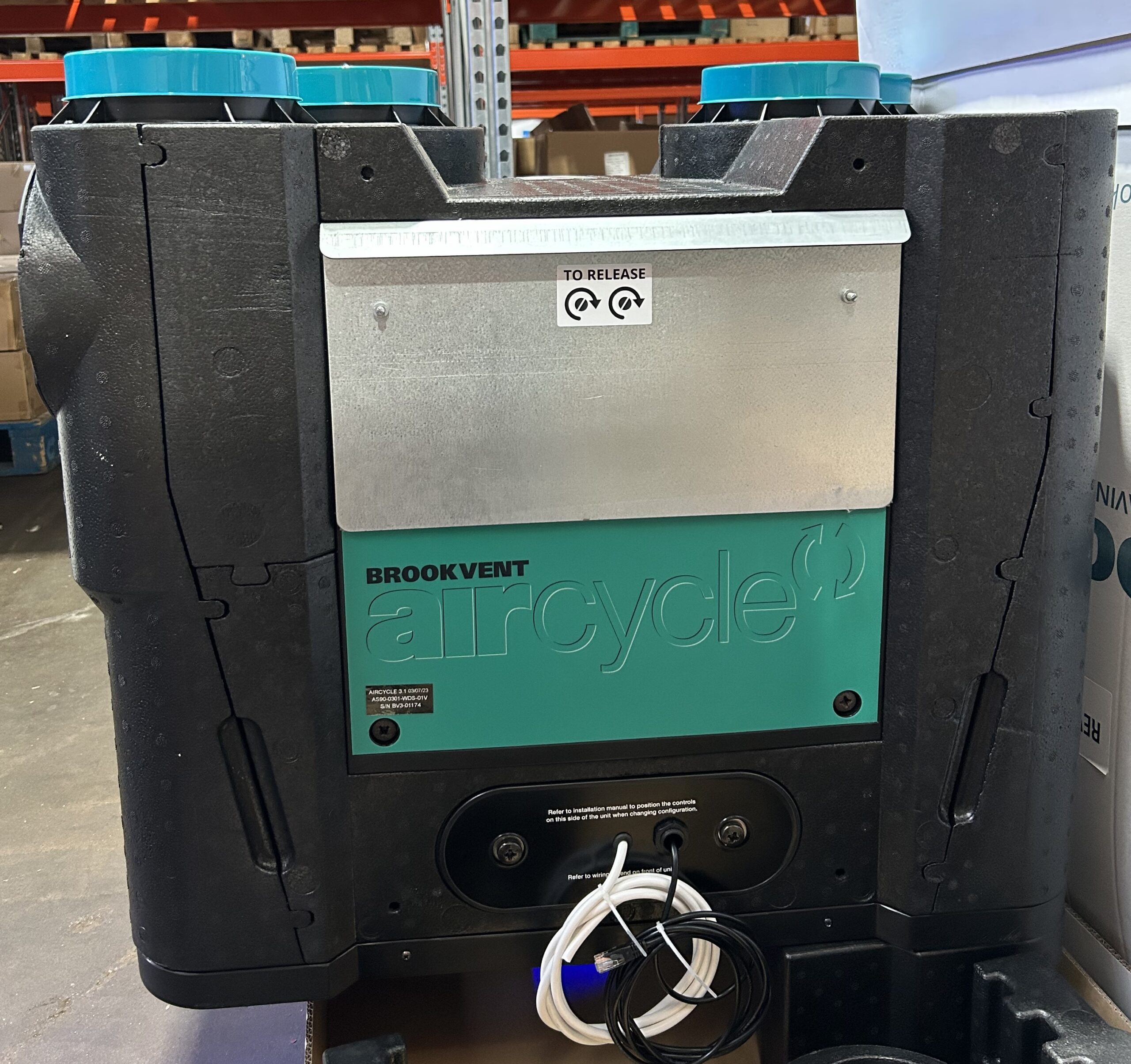

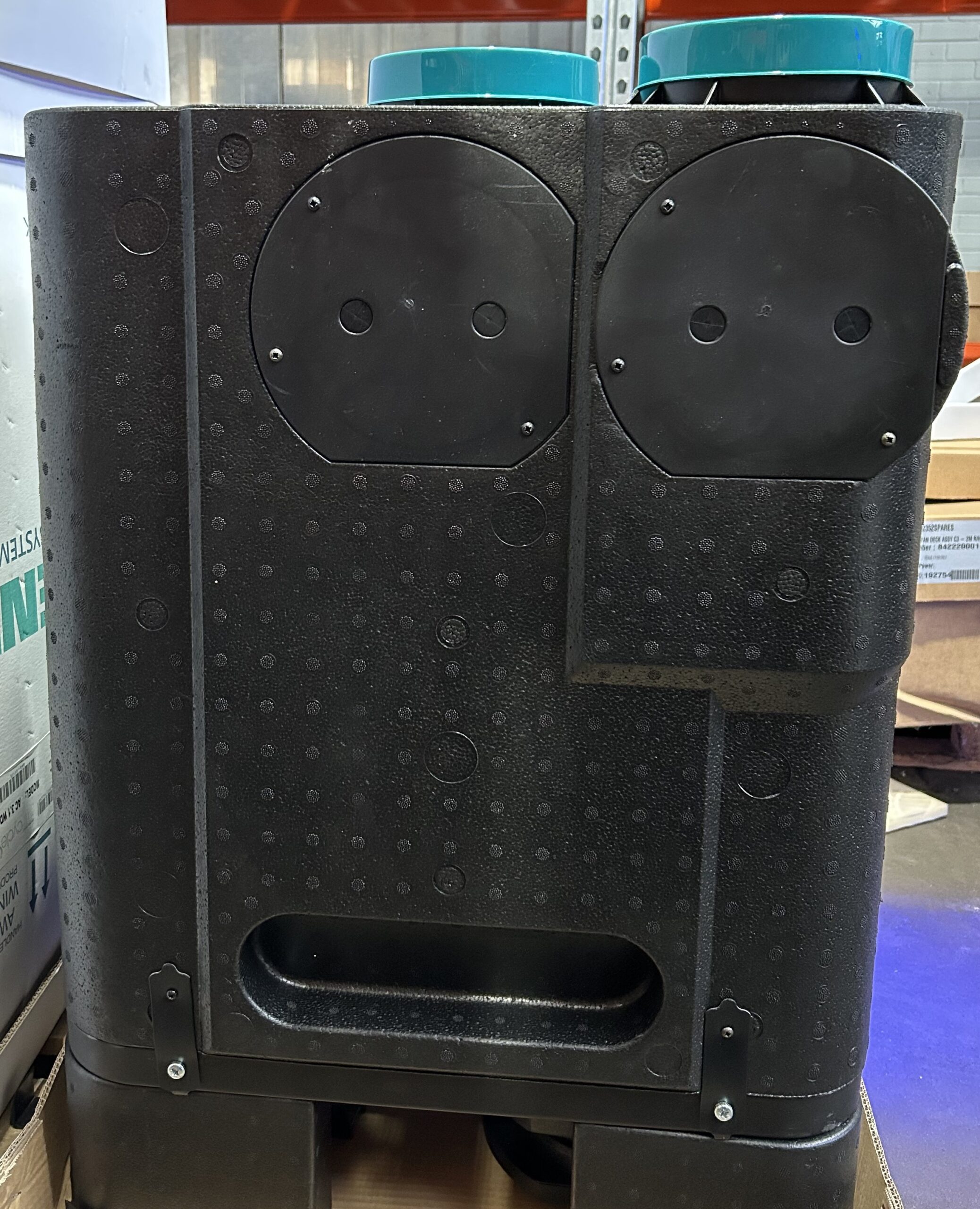

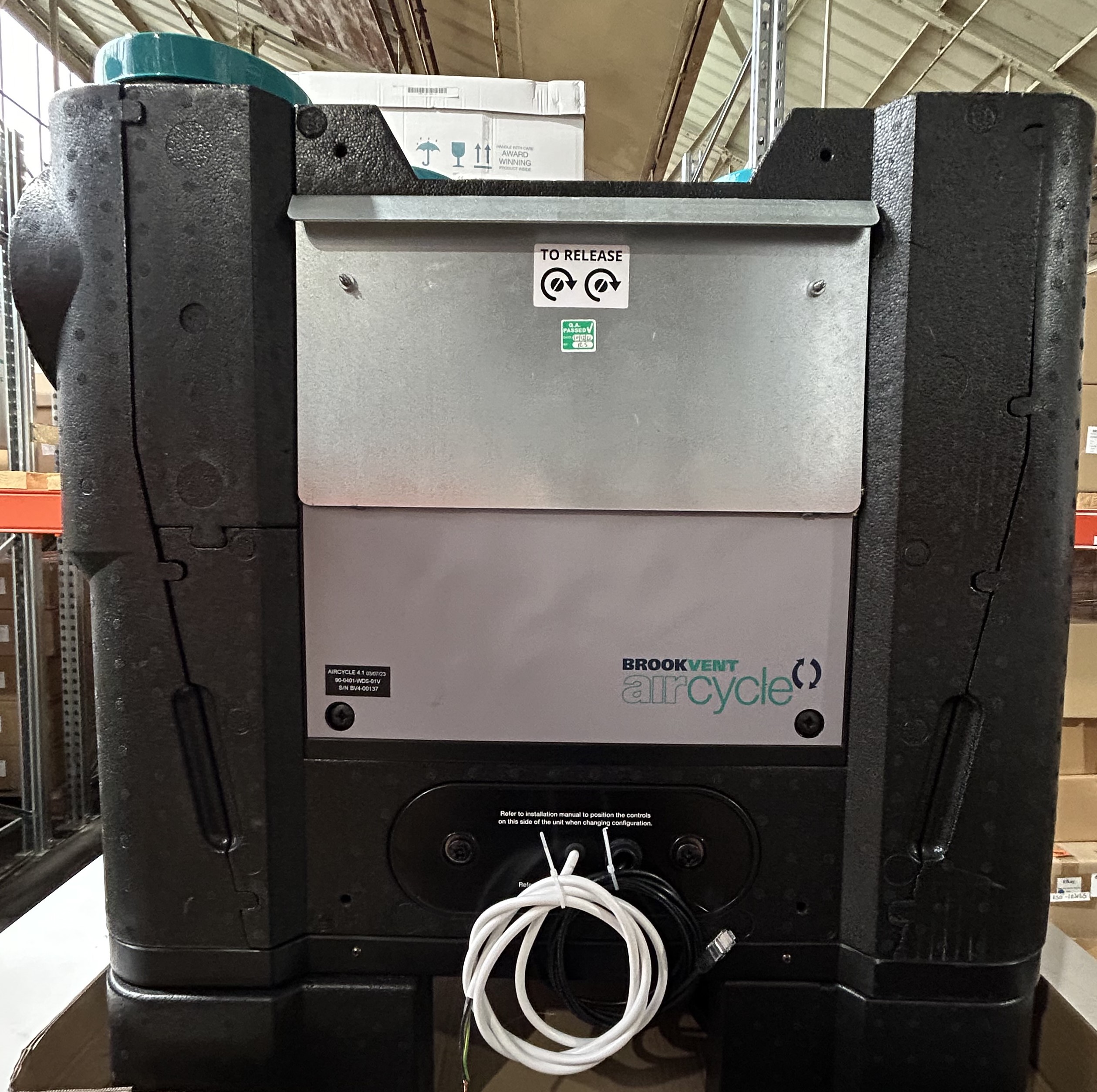

Refurbished Aircycle Heat Recovery Ventilation System
Our refurbished Aircycle units are designed to deliver optimal indoor air quality. By effectively capturing and exchanging heat between incoming and outgoing air, these units ensure a constant supply of fresh, filtered air while minimising energy wastage.
Proven Performance: Brookvent’s Aircycle Heat Recovery units are renowned for their reliability and performance. Each refurbished unit undergoes a rigorous restoration process, bringing it back to peak condition and ensuring it meets our high standards for quality and efficiency.
Eco-Friendly Comfort: Reduce your carbon footprint without compromising on comfort. Aircycle units help you achieve a sustainable, eco-friendly living or working space by maximizing heat recovery and minimising energy consumption.
Expertly Refurbished: Our team of experts accurately refurbishes each Aircycle unit, addressing wear and tear, testing components, and conducting thorough quality checks. *PLEASE NOTE: Units may be scratched or Marked*
From $223.30
Aircycle 1.2 Heat Recovery Ventilation system HRV – CEILING MOUNTED STANDARD INVERSION
With a Specific Fan Power (SFP) down to 0.53 W/l/s and a heat recovery efficiency up to 93%, delivers a high heat recovery efficiency within a very compact package.
- Up to 93% heat recovery efficiency
- Down to 0.53 W/l/s specific fan power
- 100% variable fan speed (independent fan control)
- Integral humidistat
- Automated frost protection
- Wall, ceiling or floor mount options
- Local boost facility
- Easy access filters
Aircycle 1.3 CEILING MOUNTED INVERTED & 1.3+ Heat Recovery Ventilation CEILING MOUNTED INVERTED
With a Specific Fan Power (SFP) down to 0.42 W/l/s and a heat recovery efficiency up to 92%, the aircycle 1.3 significantly reducing the space heating demand of your property, the Aircycle 1.3 delivers a healthier, more comfortable environment. Engineered for reliability.
Core features include:
- Up to 92% heat recovery efficiency
- Down to 0.42 W/l/s specific fan power
- 100% variable fan speed control
- Independent fan speed control
- 230v auto-boost integration
- Potentiometer
- Variable boost over-run timer
- Tempering summer bypass, 100% filtered
- Integral humidistat
- Automated frost protection
- Easy access filters

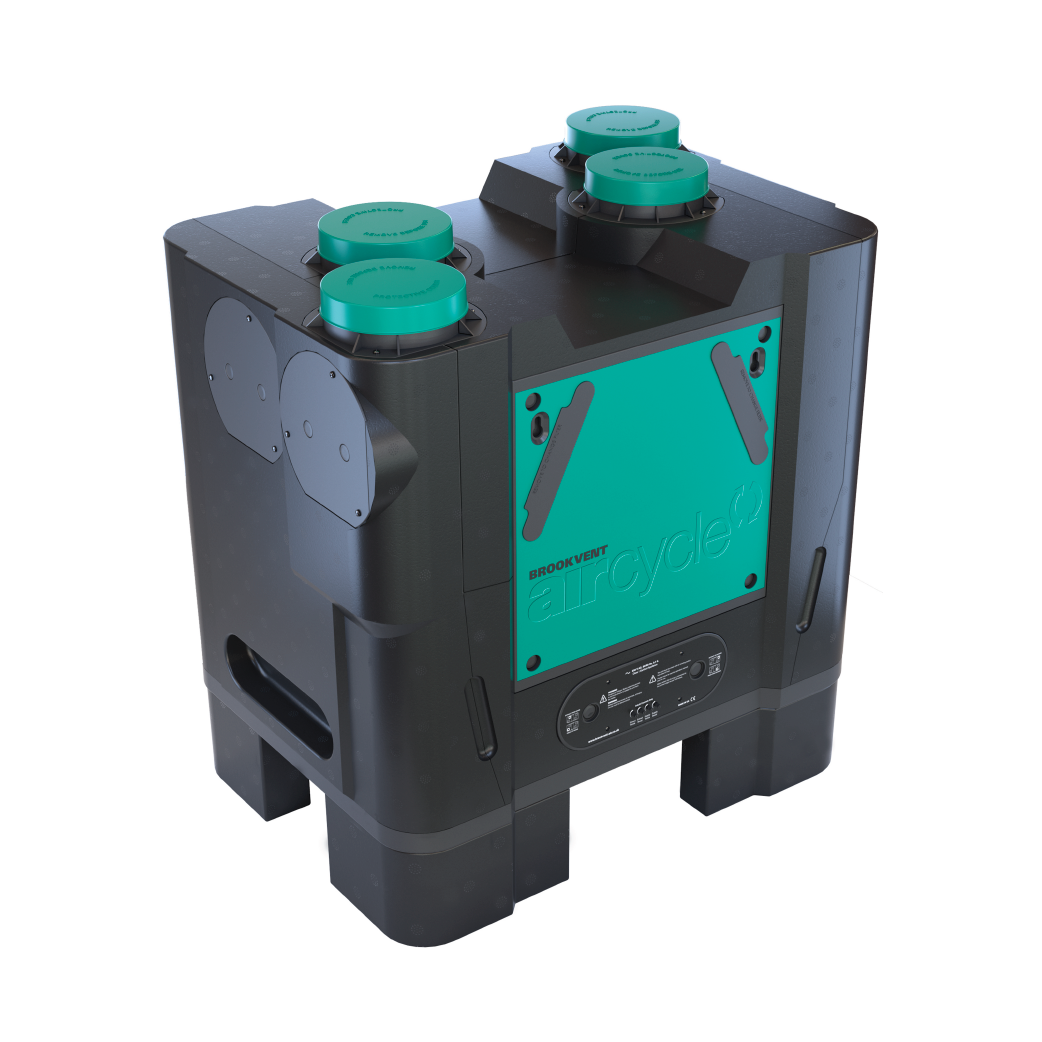

Aircycle 3.1 Heat Recovery Ventilation system HRV – POTENTIOMETER MODEL WALL MOUNT STANDARD
With a Specific Fan Power (SFP) down to 0.37 W/l/s and a heat recovery efficiency up to 93% the aircycle 3.1 succeeds in balancing the trade-off between airflow, efficiency and acoustic performance, offering a system that delivers true comfort ventilation for the end user.
Core features include:
- Up to 93% heat recovery efficiency
- Down to 0.37 W/l/s specific fan power
- 100% variable fan speed control
- Independent fan speed control
- 230v auto-boost integration
- Variable boost over-run timer
- Tempering summer bypass
- Integral humidistat
- Automated frost protection
- Top and side duct connections
- Easy access air filters (G2 up to G4)
Aircycle 3.1 Heat Recovery Ventilation system HRV – DIGITAL MODEL WALL MOUNTED STANDARD
With a Specific Fan Power (SFP) down to 0.37 W/l/s and a heat recovery efficiency up to 93% the aircycle 3.1 succeeds in balancing the trade-off between airflow, efficiency and acoustic performance, offering a system that delivers true comfort ventilation for the end user.
Core features include:
- Up to 92% heat recovery efficiency
- Down to 0.42 W/l/s specific fan power
- 4 Airflow modes (100% variable): Night, General, Boost, Purge
- Programmable 25%+ boost setting
- Remote digital control – sold separately
- Status & airflow mode Indication
- Fault alert
- Hours run meter
- 230V Auto-boost compatible
- Integral humidistat
Aircycle 4.1 Heat Recovery Ventilation system HRV WALL MOUNT STANDARD
With a Specific Fan Power (SFP) down to 0.43 W/l/s and a heat recovery efficiency up to 93% the aircycle 4.1 succeeds in balancing the trade-off between airflow, efficiency and acoustic performance, offering a system that delivers true comfort ventilation for the end user.
Core features include:
- Up to 93% heat recovery efficiency
- Down to 0.43 W/l/s specific fan power
- 4 Airflow modes (100% variable): Night, General, Boost, Purge
- Programmable 25%+ boost setting
- Remote digital control – sold seperately
- Status & airflow mode Indication
- Fault alert
- Hours run meter
- 230V Auto-boost compatible
- Integral humidistat
- Automated frost protection
- Automatic Summer bypass, 100%
Aircycle 3.1 SAP Appendix Q: Listed Results
Airflow Performance Curve
Aircycle 4.1 SAP Appendix Q: Listed Results
Airflow Performance Curve
Weight
29kg
Guarantee Period
5 Years
Materials
- Main enclosure: High density, impact resistant EPP (Expanded Polypropylene)
- PCB & control panel enclosure: ABS FR
- Filters: Polyester media (G3)
- Mounting bracket: Zinc plated steel
- Fan Scrolls: ABS
Digital Control Features:
- Independent fan speed control,
- 230V Boost input (light switch relay, PIR, boost switch etc.)
- Boost over-run timer (0- 99 mins)
- Integral humidity sensor (Boost activation) – 100% Variable RH
- Automatic frost protection
- Automatic Summer Bypass (100% Filtered)
- 4 Airflow modes (100% variable): Night, Trickle, Boost, Purge
- Smart filter maintenance alert
- Fault alert
- Status indication (Summer bypass, frost protection etc.)
- PIN Protect engineering settings
- Hours run meter
- Commissioning Settings Upload
Standards
- Fully complies with Building Regulations for UK & Ireland
- SAP Appendix Q Listed | DEAP Listed | Energy Savings Trust Best Practice |
CE
- aircycle 3.1 Digital Range – Product Brochure
- aircycle 3.1 Digital Range – Install and Maintenance Manual
- aircycle 3.1 Consultants Specification
- aircycle 3.1 ErP Energy Label
- aircycle 3.1 Product Fiche
- aircycle 4.1 Digital Range – Product Brochure
- aircycle 4.1 Digital Range – Install and Maintenance Manual
- aircycle 4.1 Consultants Specification
- aircycle 4.1 ErP Energy Label
