Sale!
intermittent extract ventilation
airstream Xe+ - Image 2
airstream Xe+ - Image 3
airstream Xe+ - Image 4

airstream Xe+

Brookvent’s Airstream Xe+ is a discreet intermittent decentralised mechanical ventilation unit, or dMEV – a low energy fan designed to keep your air clean and fresh. Suitable both for new builds and for retrofitting into refurbishment projects, the Airstream Xe+ features a modern and aesthetically pleasing front flat cover, ideal for interior design concerns. This is easily removed for cleaning, without the need of tools. Aerodynamic deflectors on the housing ensure quiet function, reducing air turbulence and maximising airflow.

Product Brochure
Enquire About This Product

From $46.20

Clear
SKU: N/A

KEY FEATURES

— IPX4 protection degree.
— Aesthetic front flat cover for modern interior design, easily removed for cleaning without the need of tools.
— Aerodynamic deflectors on the housing to reduce air turbolences and designed to maximise airflow.
— Rigid optimised spigot preventing deformation and designed to maximize airflow.
— Low power consumption: Energy efficient EC motor
— 100mm and 150mm diameter versions available.
— Versatile installation: wall/panel, ceiling and window.
— Totally recyclable plastic components, environmentally friendly.
— Double insulated: no earth connection is required.
— Tested to the latest standards:
• units are tested in the TÜV Rhineland laboratory, meaning accurate, up to date information on electrical safety, performance and noise level that can be relied upon
• designed and manufactured in accordance with EN60335-2-80 (Low Voltage Directive) and the EMC Directive (Electromagnetic Compatibility)

OPTIONS

Airstream Xe+
The fan is operated via a separate ON/OFF switch or the light switch.

Airstream Xe+ T

The fan is equipped with a timer circuit adjustable from 1 to 25 minutes delay. After switching off, the fan continues to run for the pre-set period.

Airstream Xe+ HT
The fan is provided with an electronic circuit with a humidity sensor on board (adjustable from 50% to 95% RH) and a timer, adjustable from 1 to 25 minutes
delay. When the level of relative humidity is higher than the pre-set threshold, the fan is automatically activated. When the relative humidity goes below the set level, the fan continues to run for the preset period.

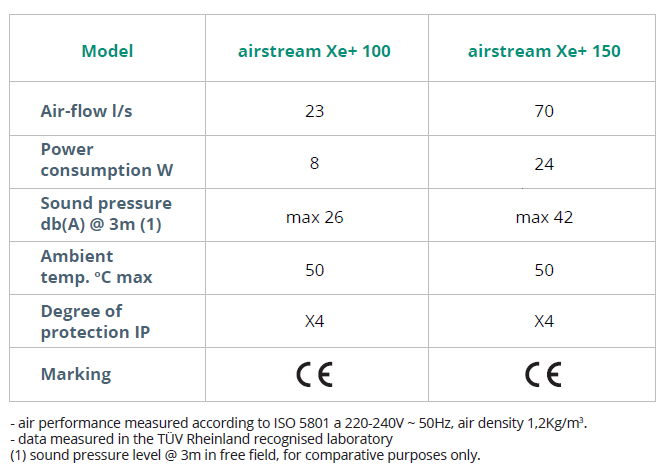

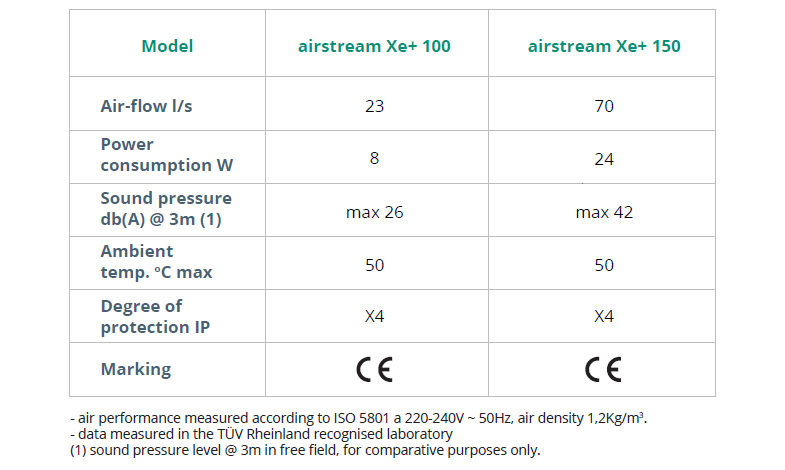

PERFORMANCE DATA

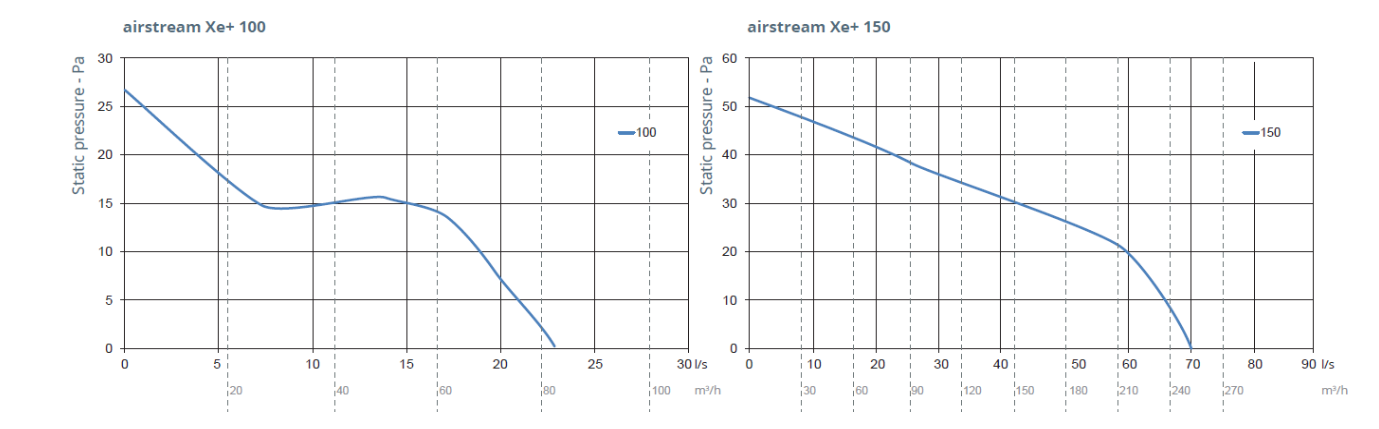

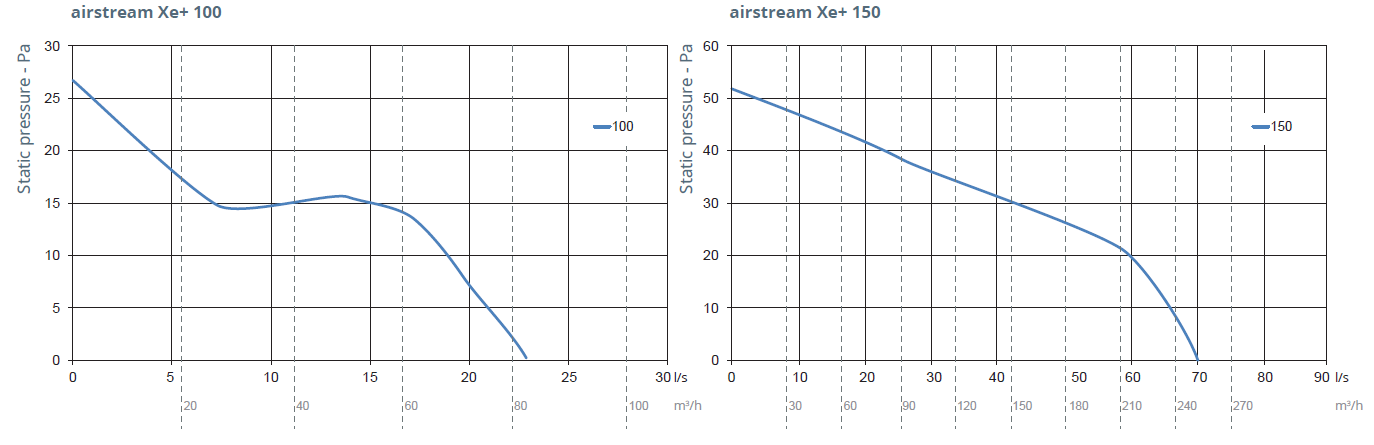

PERFORMANCE CURVES

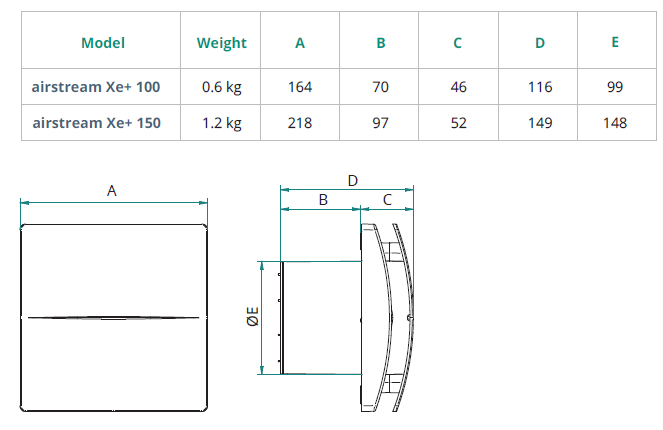

DIMENSIONS

airstream_XE+ brochure
airstream Xe+ – Manual

//

Accessories

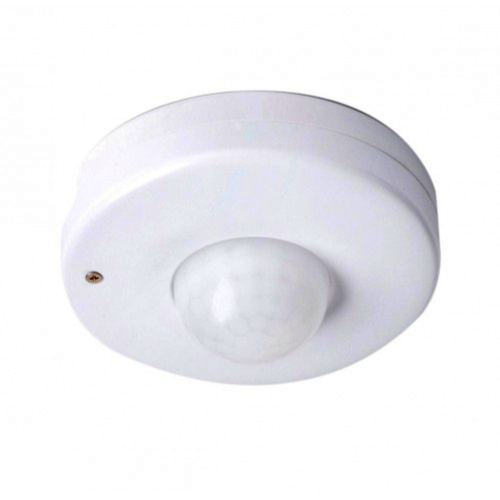

  • Passive Infrared (PIR) Sensor

    Product Code: AF70-70-PIR SW

    • Rear and side entry knockouts, integral cable clamp and large mains terminals for 2 x 1.5mm conductors. Easy to wire from surface cables and enables loop-in/ loop-out for supply to other sensors.

    • Elongated fixing slots; simple to position and fix to surface.

    • Passive infra-red; ensures light is switched on when sensor detects movement of heat; therefore lighting is switched off when the area is vacated. There is less likelihood of false triggers compared to microwave which switches on any movement.

    • Integral sensor dust-shield to prevent false triggering.

  • SM 1000

    airvent SM 1000 Trickle Vent

    The SM 1000 trickle vent is the ultimate slimline vent solution. The vent has a sleek, unobtrusive design and a rounded hood, and is simply mounted onto your existing windows. It’s quick and easy to install and extremely simple to use.



    The SM 1000 includes an insect grille, allowing you to keep your space ventilated without letting any pests in. It is also available in a wide range of colours and finishes and can be ordered in ready-made or bespoke sizes, so it will fit seamlessly into your space. It’s beautifully simple.
