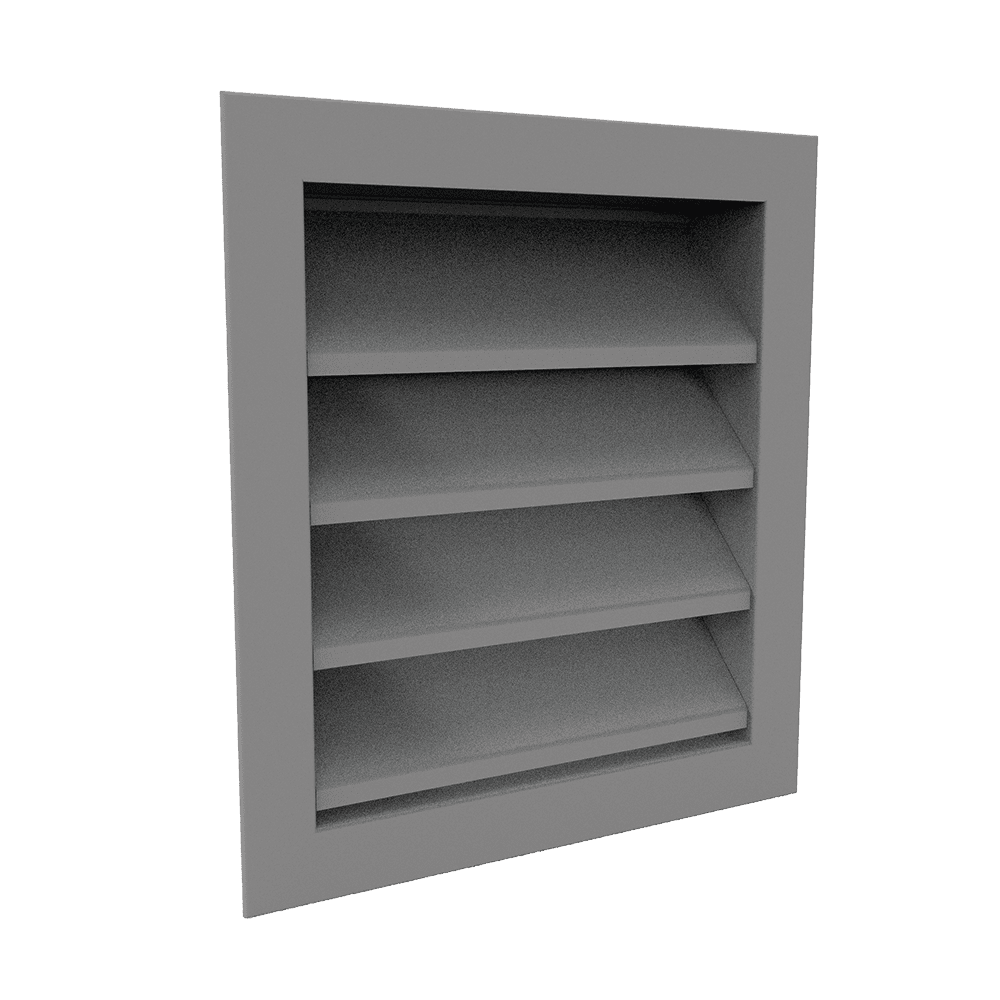

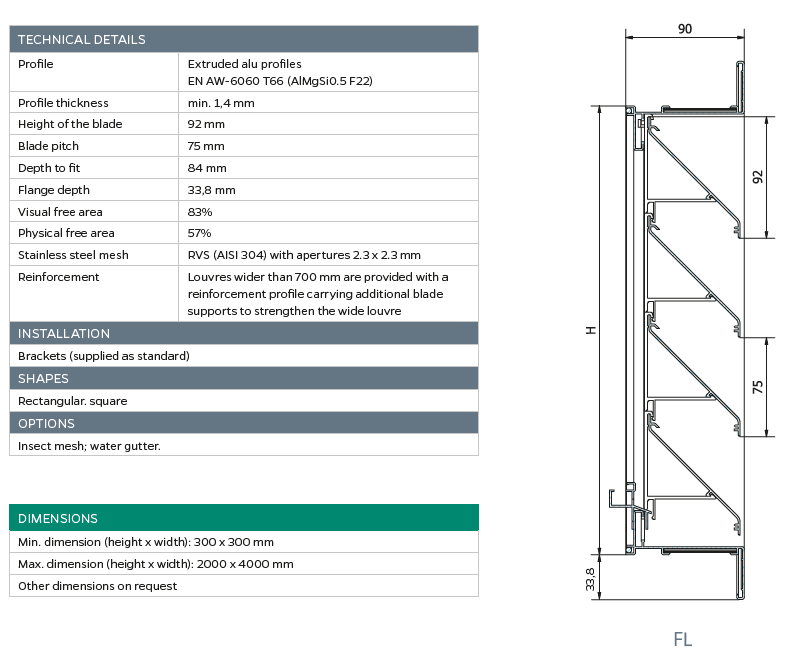

BRL75Z-FL is a Standard Ventilation Wall Louvre with flange with 75 Z-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 83% and physical free area is 57%.
DIMENSIONS
Min. dimension (height x width): 300 x 300 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
BRL34Z-GL EWR is a Ventilation Glazed-in Louvre with increased water resistance with 34 Z-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 68% and physical free area is 48%.
DIMENSIONS
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
BRL50Z-FL is a Standard Ventilation Wall Louvre with flange with 50 Z-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 78% and physical free area is 48%.
DIMENSIONS
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on reques
BRL34V-GL is a Standard Ventilation Glazed-in Louvre with 34 V-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm.
DIMENSIONS:
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
