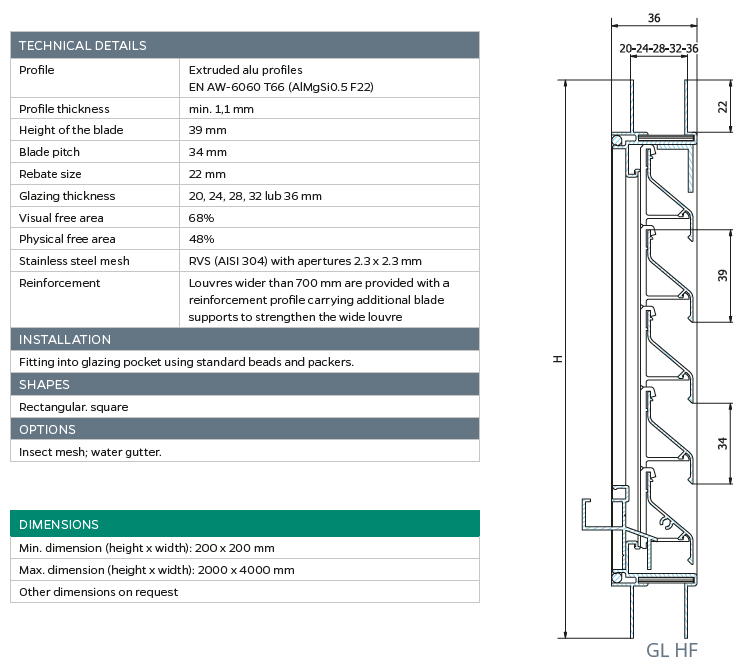

BRL34Z-GL HF is a Ventilation Glazed-in Louvre with increased flow area with 34 Z-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 68% and physical free area is 48%.
DIMENSIONS
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
BRL65Z-FL is a Standard Ventilation Wall Louvre with flange with 65 Z-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 78% and physical free area is 53%.
DIMENSIONS
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
BRL20V-GL is a Standard Ventilation Glazed-in Louvre with 20 V-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm.
DIMENSIONS:
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
BRL50Z-GL is a Standard Ventilation Glazed-in Louvre with 50 Z-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 78% and physical free area is 48%.
DIMENSIONS:
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
