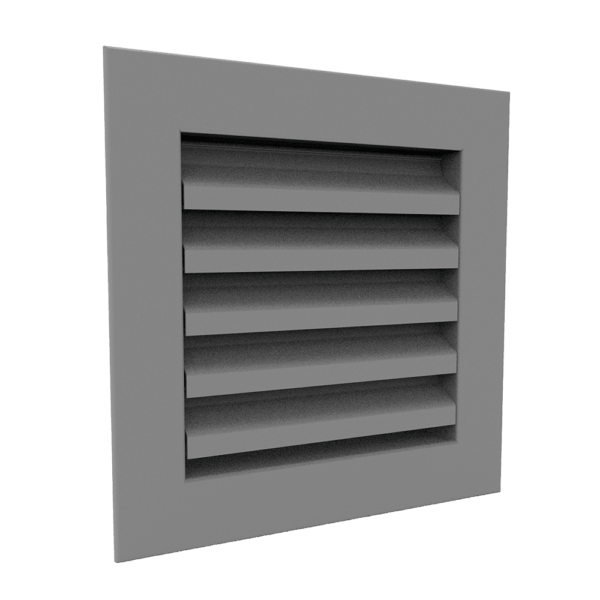

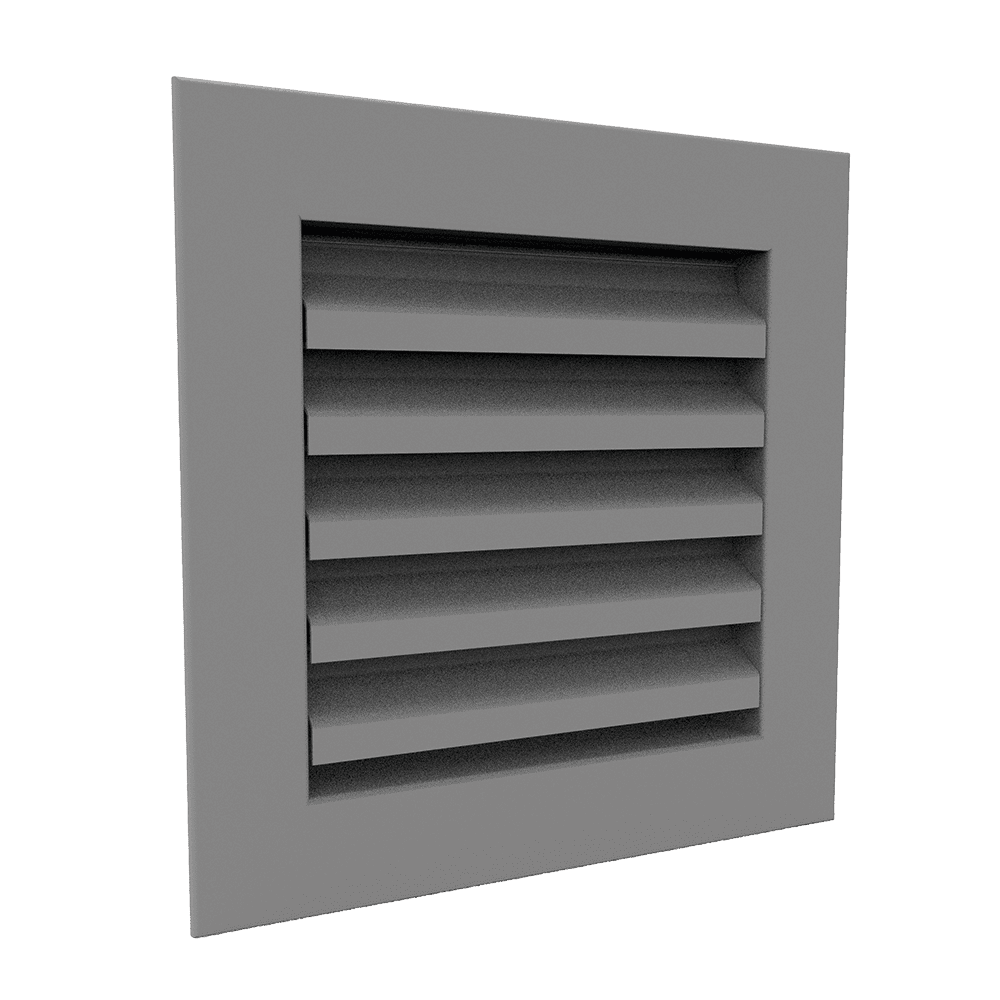

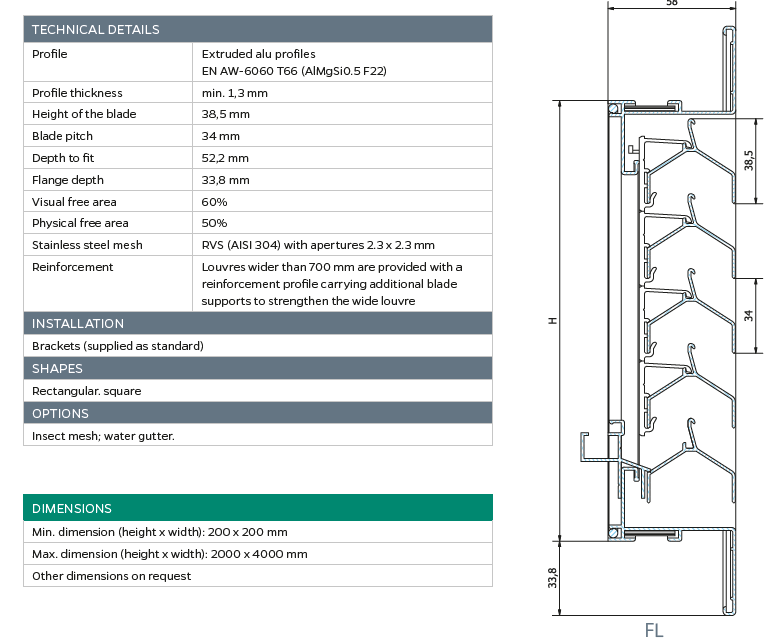

BRL34V-FL is a Standard Ventilation Wall Louvre with 34 V-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 60% and physical free area is 50%.
DIMENSIONS
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
BRL60Z-GL is a Standard Ventilation Glazed-in Louvre with 60 Z-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 90% and physical free area is 76%.
DIMENSIONS
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
BRL65Z-FL EWR is a Ventilation Flanged Wall Louvre with increased water resistance with 65 Z-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 31% and physical free area is 14%.
DIMENSIONS
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
BRL34V-GL is a Standard Ventilation Glazed-in Louvre with 34 V-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm.
DIMENSIONS:
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
