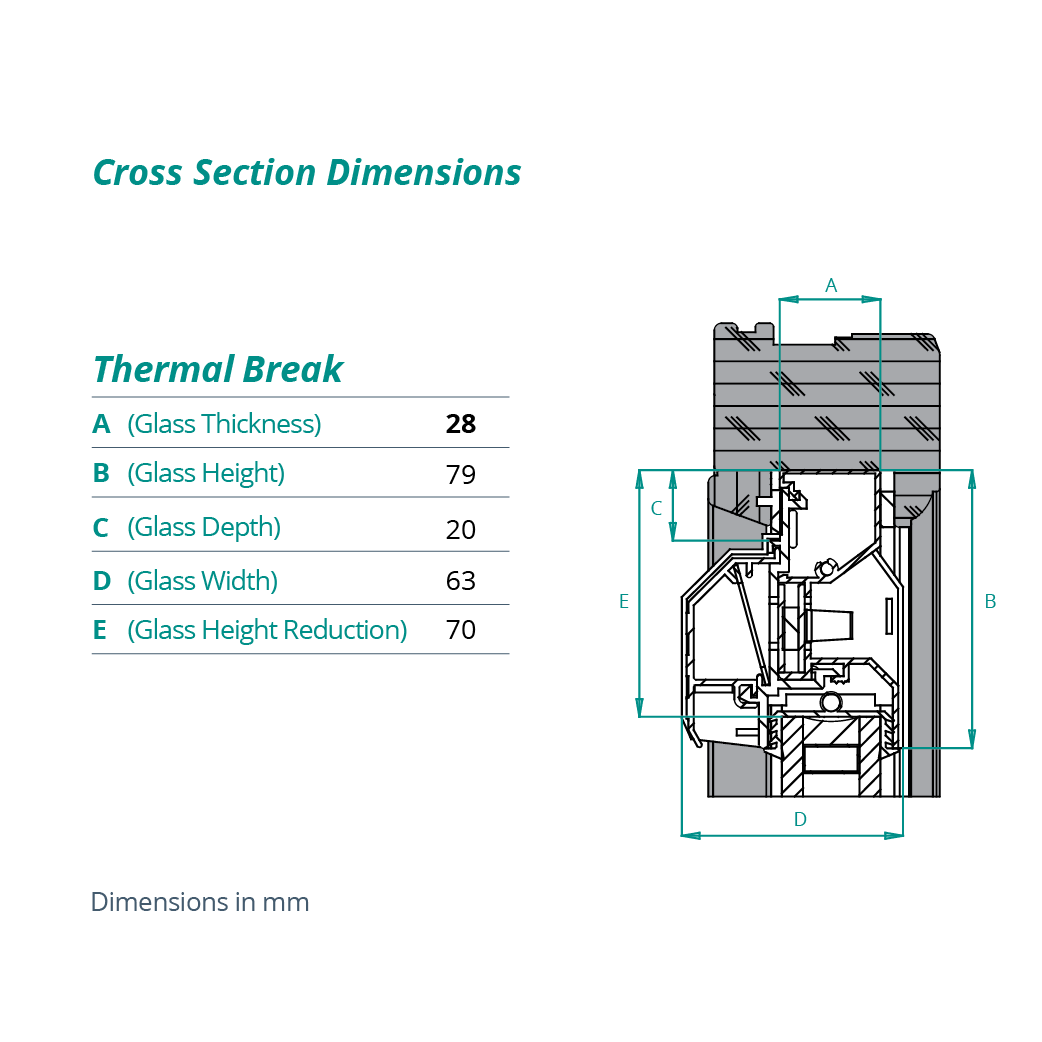

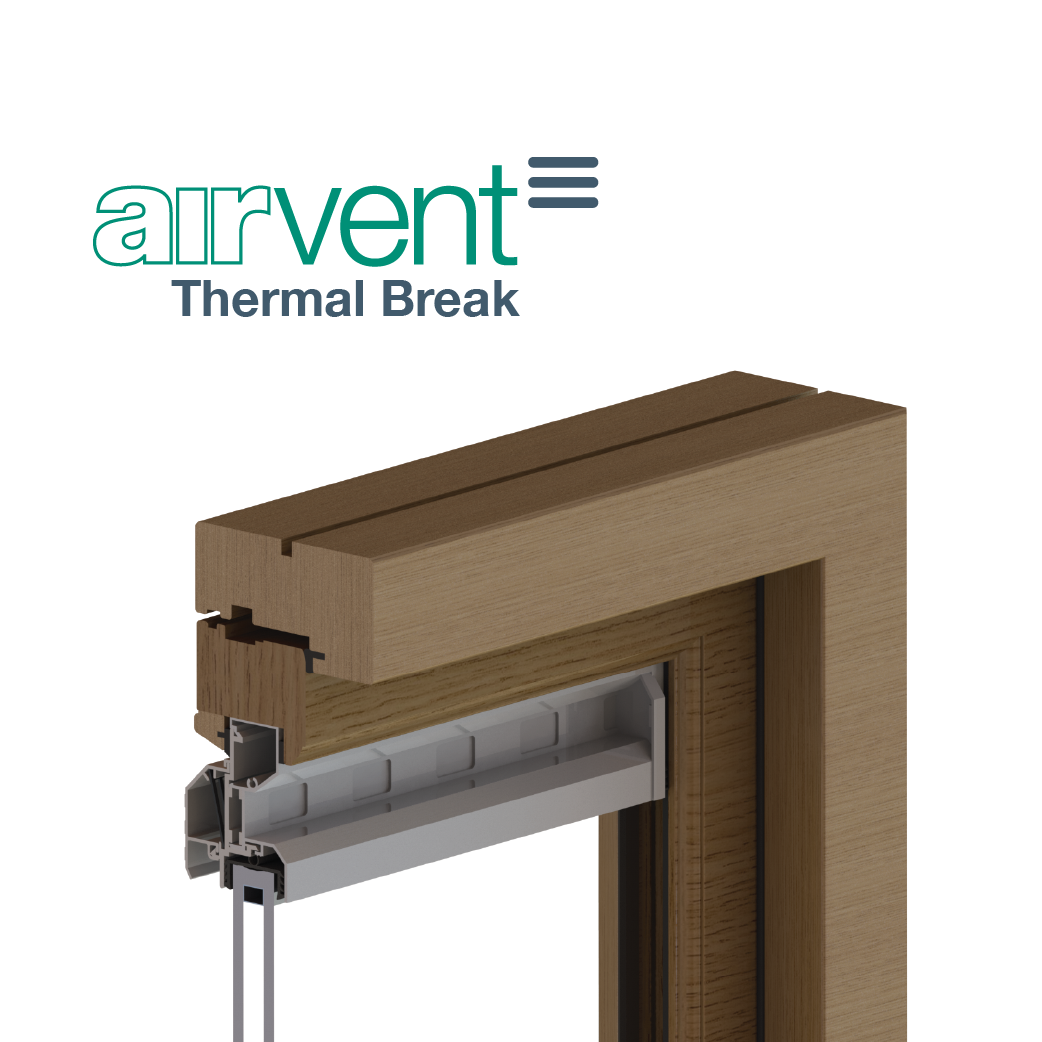

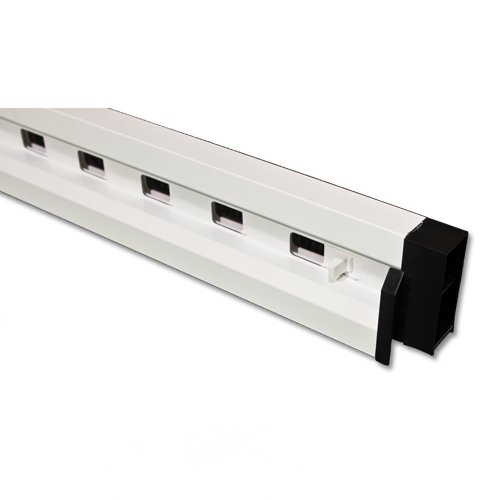

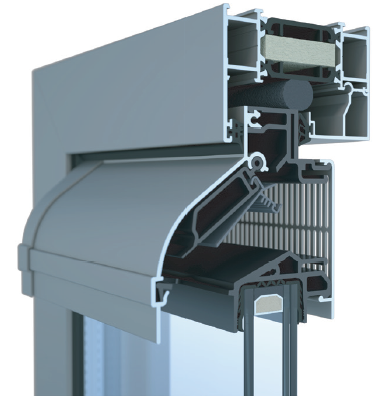

Airvent DG75 (EX) is a thermally broken glazed in vent with sleek lines and different airflow options. When you need a glazed in vent the DG75 can cope with most situations. with options for very high airflow and excellent weatherability. Ideal for glazing thickness up to 32mm.
Thermal Break
A high performing glazed in vent which provides a complete thermal barrier in the closed position. Its double seal and pressure pads ensure that it is ideally suited for high and exposed locations.
High performance vent with double seal. Thermally broken to give excellent protection in demanding situations.
A high performing glazed in vent which provides a complete thermal barrier in the closed position. Its double seal and pressure pads ensure that it is ideally suited for high and exposed locations. Core features include:
- Thermally broken (uPVC Barrier)
- Insect Grill
- Aluminium Construction (vent body)
- uPVC Hood
- Polyester Powder Coated
- 10 Year Guarantee
The airvent Thermal Break is available in a wide range of size and colour options to suit your specific project needs.
COLOURS
| White (HIPCA) "Satin" | Mill Finish |
| Black RAL 9005 "Satin" | Bespoke Colours and Finishes Available |
Choose from our stocked off-the-shelf range or indeed create something a little more bespoke.
- Manual control
- Cord control (right or left hand)
- Bespoke sizes
- Upward deflector
- Fully controllable ventilation
- Aluminium hood
Airflow guide
| Glass Width | Option | Equivalent Area / Metre | Length for 2500 EA | Length for 5000 EA | Geometric Open Area / Metre |
|---|---|---|---|---|---|
| 24mm | Thermal Break (Fully Controllable) | 5655 | 442mm | 884mm | 6414 |
| 24mm | Thermal Break (Fully Controllable & Upward Deflector) | 5111 | 489mm | 978mm | 6414 |
| 28mm | Thermal Break (Fully Controllable) | 5670 | 441mm | 882mm | 6414 |
| 28mm | Thermal Break (Fully Controllable & Upward Deflector) | 5225 | 478mm | 957mm | 6414 |
Acoustics
Under normal conditions the airvent Thermal Break achieved the following Sound Reduction results:
| Position | Acoustic Detail |
|---|---|
| FULLY OPEN (Normal Operation Mode) | Up to 30 db Dnt Rw Up to 30 db Dne W |
| CLOSED (Concealed Trickle) | Up to 42.5 db Dnt Rw Up to 42 db Dne W |
| Acoustic test data available upon request. | |
