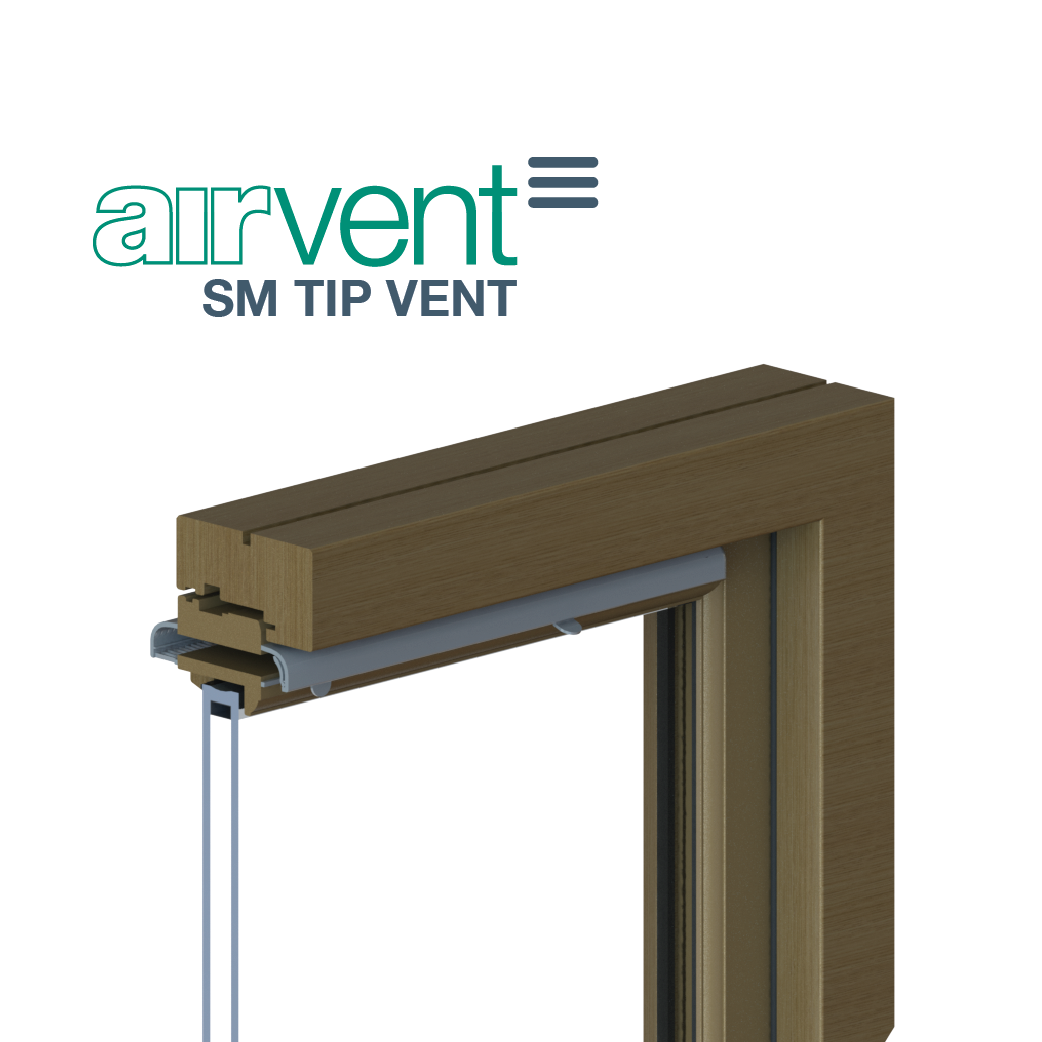

airvent SM TIPVENT

The SM TIP VENT is a high quality plastic window vent that makes a huge difference to air quality without breaking the bank. Made of cost effective UV-stabilised plastic, this vent comes in 3 different sizes and a wide range of colours so you can choose the perfect fit for your space.



The SM TIP VENT comes with an insect grille in the external hood, keeping critters at bay whilst letting fresh air in. You also have a choice of 2 different airflow modes. With a 2 year manufacturer’s guarantee, you can breathe easy with total peace of mind.

Enquire About This Product



The SM TIPVENT is a high quality, dual opening, plastic window vent available in 3 core airflow sizes. Features include:

  • 3 core product sizes:
    • 2700mm2 Equivalent Area and 4000mm2 Geometric Open Area
    • 2500mm2 Equivalent Area and 3000mm2 Geometric Open Area
    • 1400mm2 Equivalent Area and 2000mm2 Geometric Open Area
  • Dual opening internal vent, allowing a choice of 2 airflow modes
  • Modern, rounded design
  • Manufactured from high quality, UV-stabilised ABS

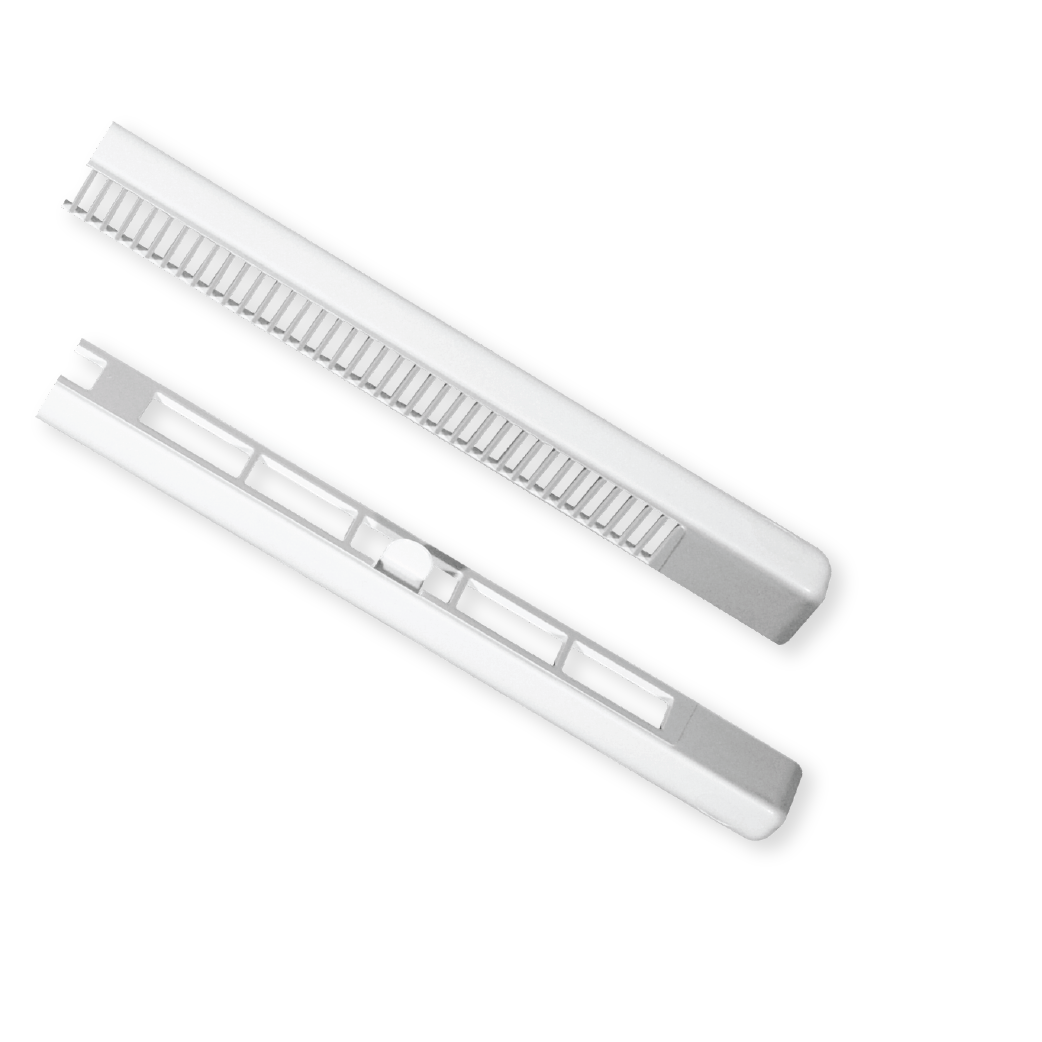

  • External hood complete with insect grille as standard
  • Positive open and close action
  • 2 year guarantee

The SM TIPVENT is available in a range colour options to suit your specific project needs.

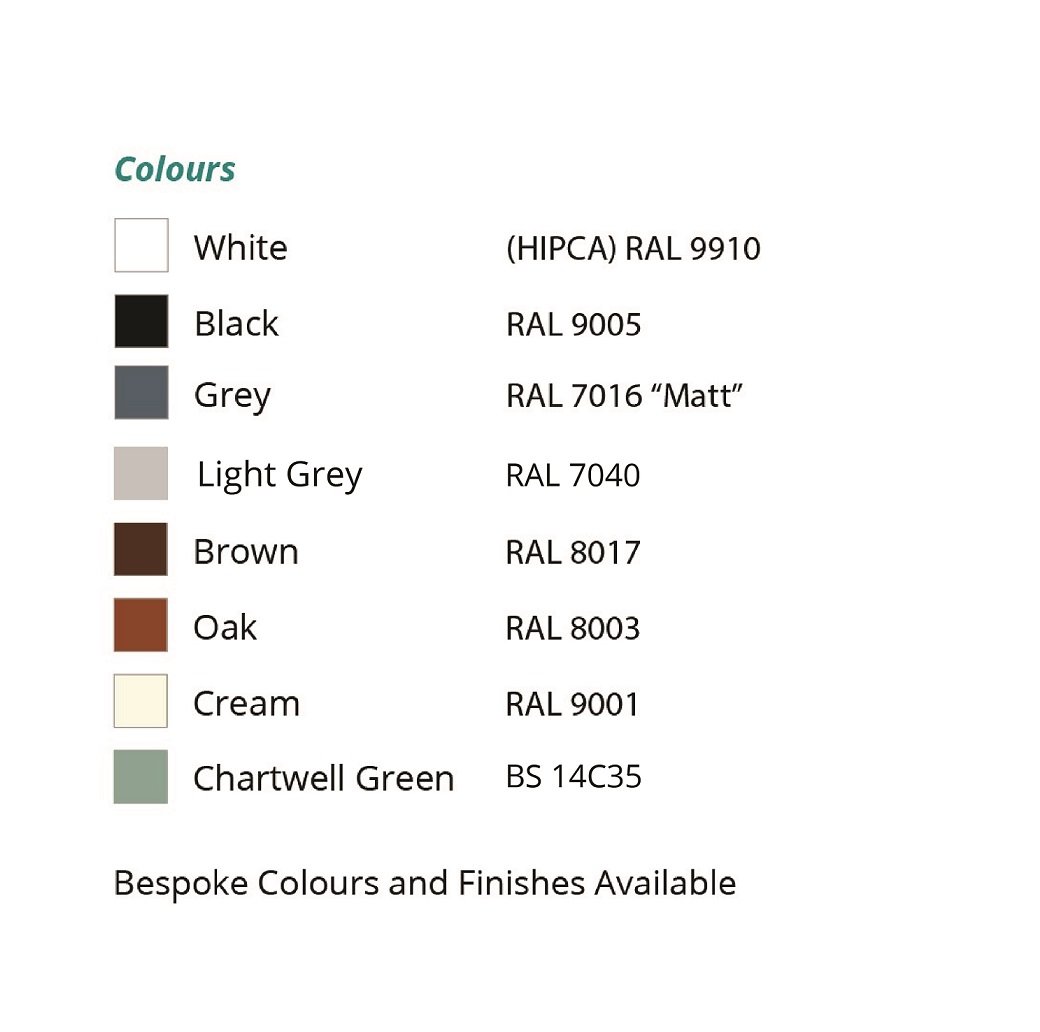

COLOURS

White RAL 9910
Black RAL 9005
Grey RAL 7016
Light Grey RAL 7040
Brown RAL 8017
Cream RAL 9001
Chartwell Green BS 14C35
Mixed colour sets of internal vent and external hood available on request.

Bespoke colours and finishes are available upon request (minimum order quantity applies)

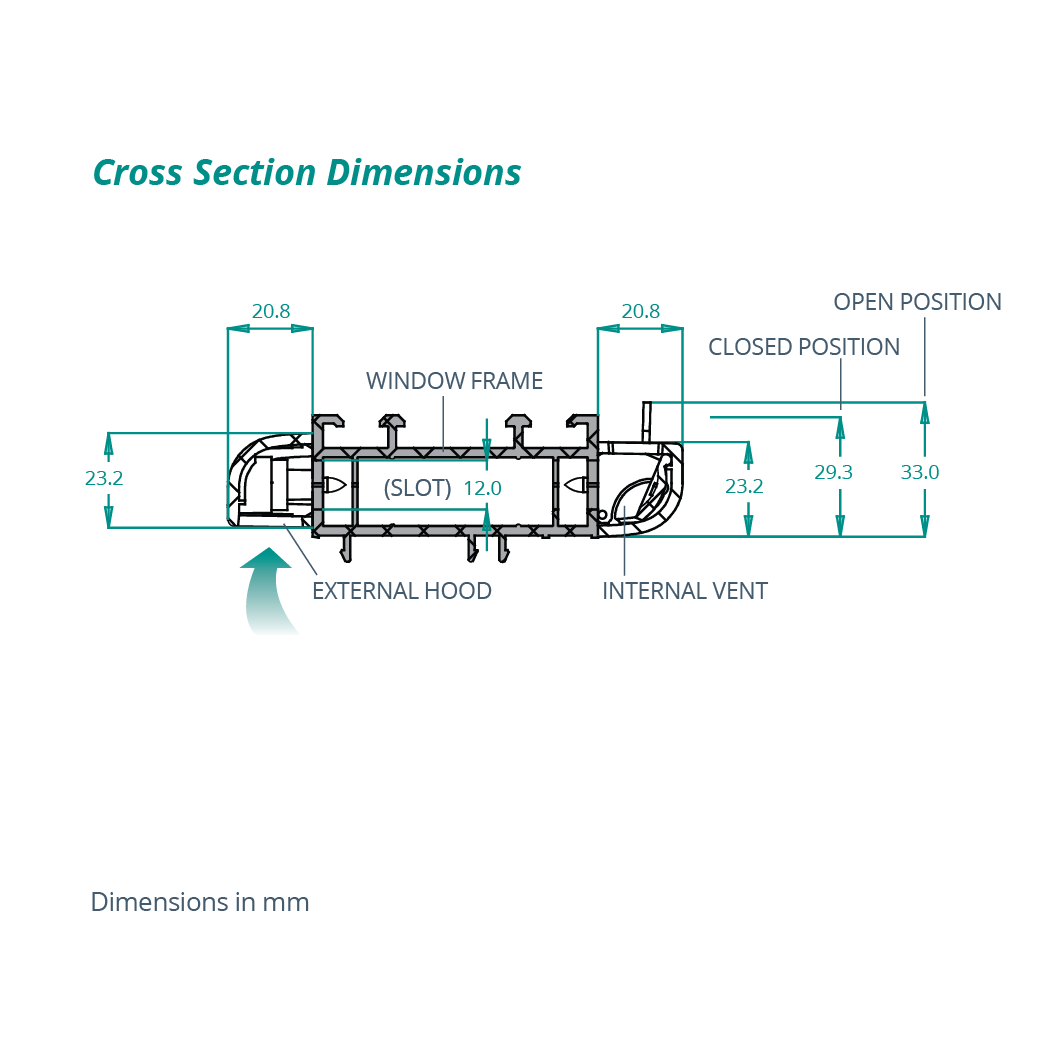

Geometric Open AreaEquivalent AreaOverall Slot SizeOverall Vent LengthOverall Hood Length
4000mm²2700mm²360mm430mm430mm
3000mm²2500mm²258mm315mm315mm
2000mm²1400mm²190mm249mm249mm

Acoustics

Under normal conditions the airvent SM TIPVENT achieved the following Sound Reduction results:

POSITIONACOUSTIC DETAIL
OPENUp to 32 db Dne W
CLOSEDUp to 38 db Dne W
Acoustic test data available upon request

Air Permeability

50 Pa  |  3.9 l/s (Closed Position)

Water Tightness

Pressure @ no leakage  |  600 Pa
