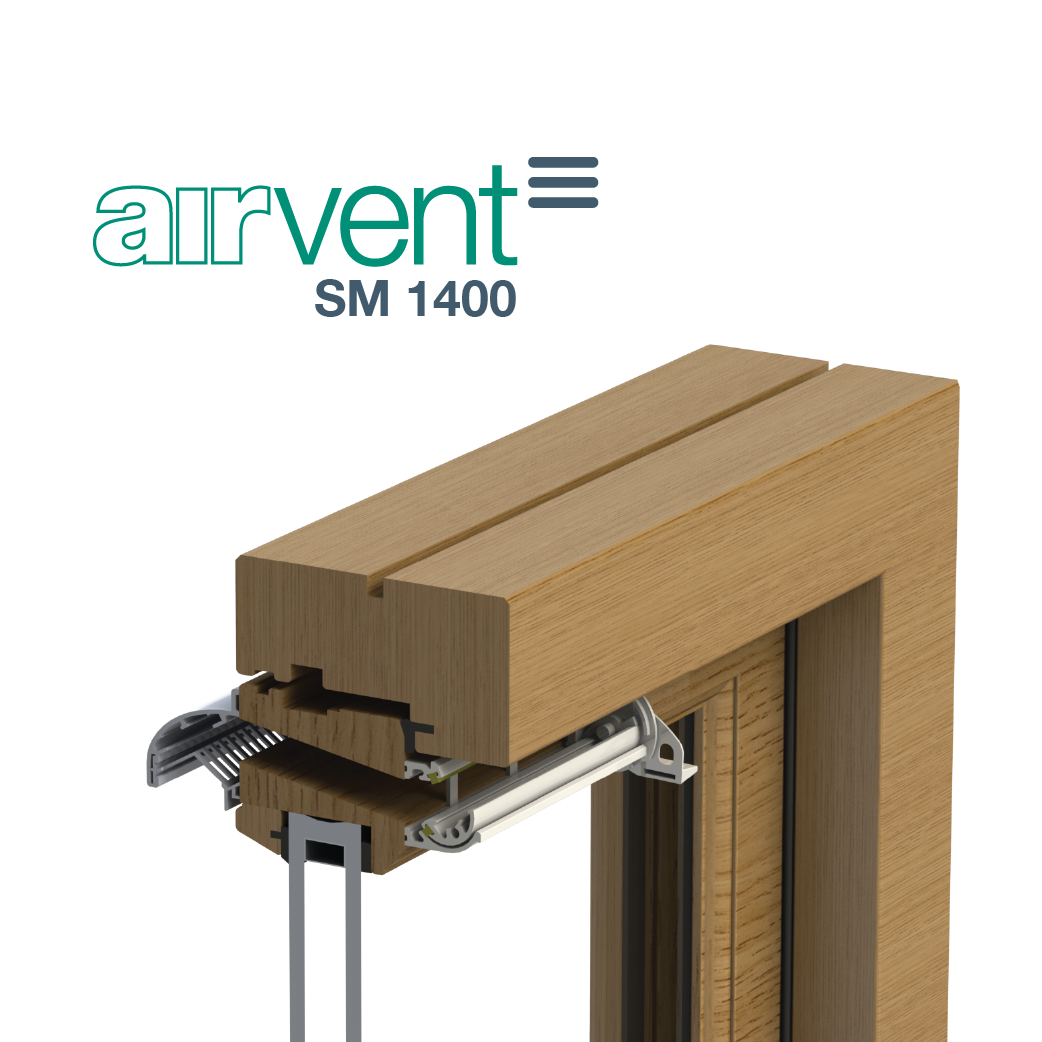

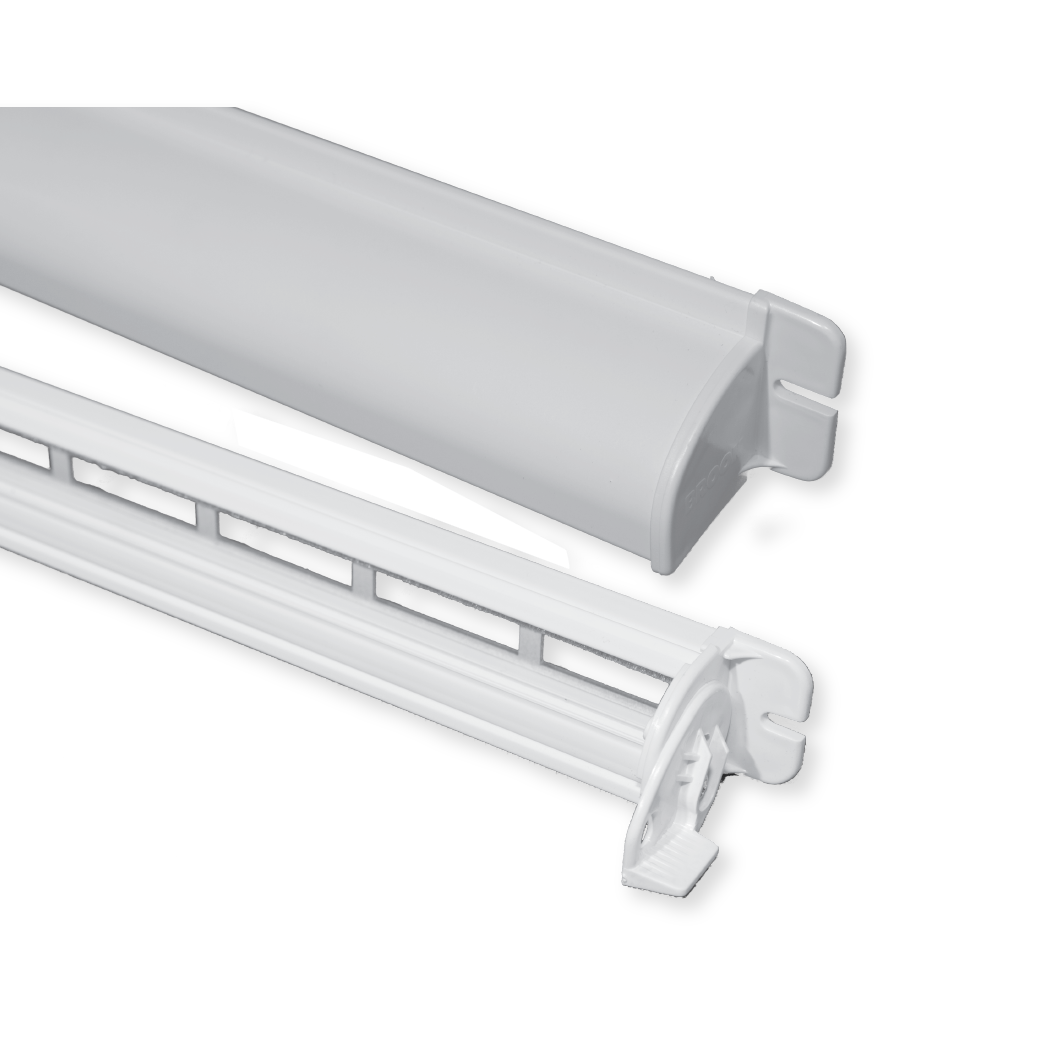

airvent SM 1400
The SM 1400 is a little vent that does a lot. This vent is severe weather rated and features wool pile seals for extra durability and resistance to extreme weather, making it perfect for exposed locations and high rise buildings. It also comes with a 10 year guarantee for complete peace of mind.
The SM 1400 has natural upward deflection and is fully controllable so you can choose the perfect level of ventilation for your needs. It’s streamlined and unobtrusive but will make a huge impact on your air quality.
The SM 1400 is a severe weather rated surface mounted vent complete with wool pile seals for added performance, making it an ideal solution for exposed locations. Core features include:
- Wool pile seals
- Insect grill
- Natural upward deflection
- Aluminium construction
- Fully controllable ventilation
- Polyester powder coated
- 10 year guarantee
The SM 1400 is available in a wide range of size and colour options to suit your specific project needs.

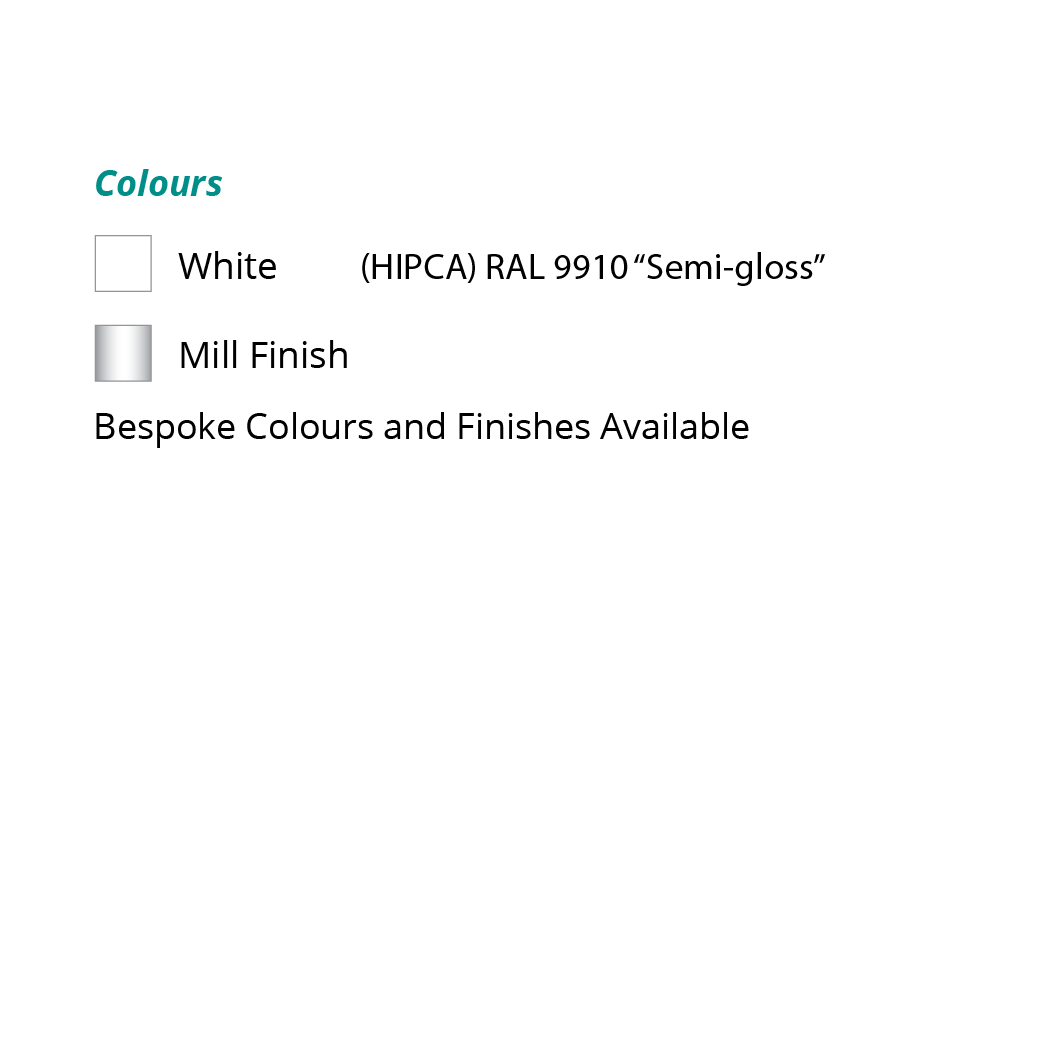

COLOURS
| White (HIPCA) "Satin" | Bespoke Colours and Finishes Available |
| Mill Finish |
Choose from our stocked off-the-shelf range or indeed create something a little more bespoke.
- Manual Control
- Rod control (Portable) 0.5m / 1m
- Bespoke sizes
- Bar length
Geometric modular sizes

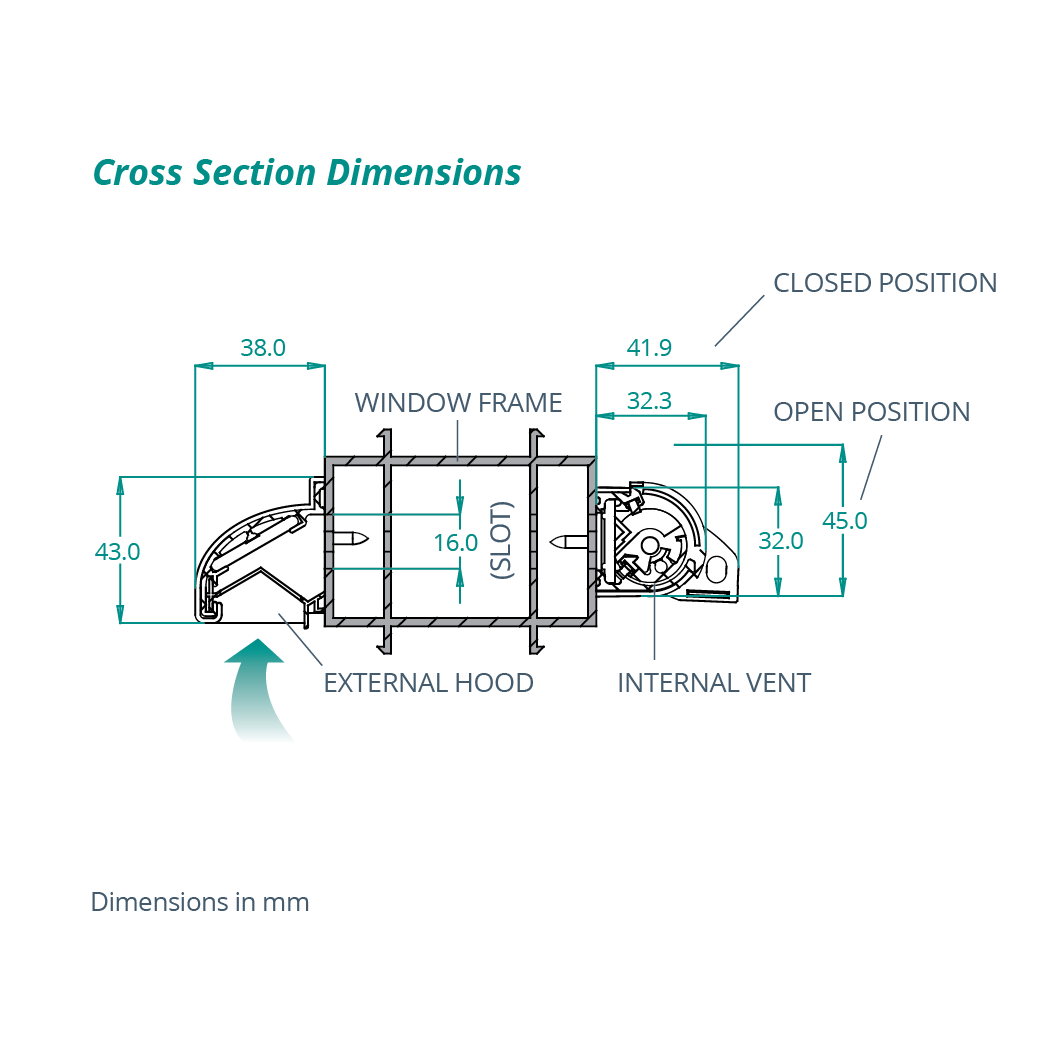

| Geometric Open Area | Equivalent Area | Overall Slot Size | Overall Vent Length | Overall Hood Length |
|---|---|---|---|---|
| 2296mm² | 1575mm² | 16m x 160mm | 200mm | 200mm |
| 2996mm² | 2200mm² | 16m x 210mm | 250mm | 250mm |
| 3696mm² | 2825mm² | 16m x 260mm | 300mm | 300mm |
| 4396mm² | 3450mm² | 16m x 310mm | 350mm | 350mm |
| 5096mm² | 4075mm² | 16m x 360mm | 400mm | 400mm |
| 5796mm² | 4700mm² | 16m x 410mm | 450mm | 450mm |
| 6496mm² | 5325mm² | 16m x 460mm | 500mm | 500mm |
| 7196mm² | 5950mm² | 16m x 510mm | 550mm | 550mm |
| 7896mm² | 6575mm² | 16m x 560mm | 600mm | 600mm |
| 8596mm² | 7200mm² | 16m x 610mm | 650mm | 650mm |
| 9296mm² | 7825mm² | 16m x 660mm | 700mm | 700mm |
Acoustics
Under normal conditions the airvent SM 1400 achieved the following Sound Reduction results:
| POSITION | ACOUSTIC DETAIL |
|---|---|
| OPEN | Up to 32 db Dne W |
| CLOSED | Up to 39 db Dne W |
| Acoustic test data available upon request | |
Related Products

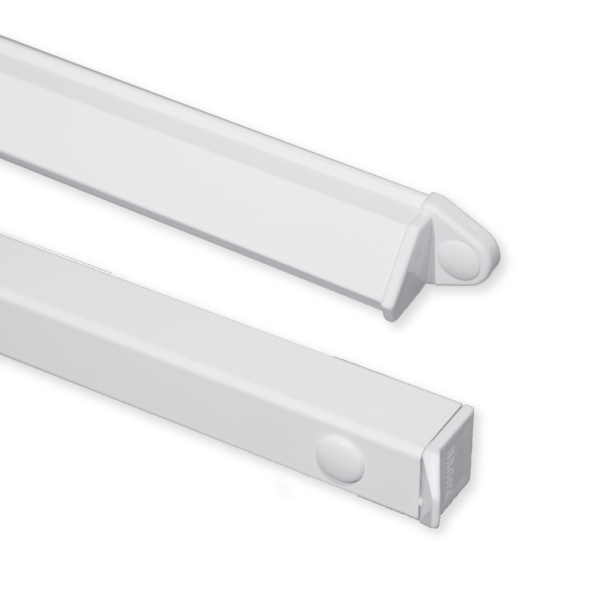

The SM 1200 is a sleek, unobtrusive window vent which achieves a sound reduction of up to 43 db Dnt Rw in the closed position. This makes it a great choice for people who live in noisy areas and want to improve their air quality and ventilation.
