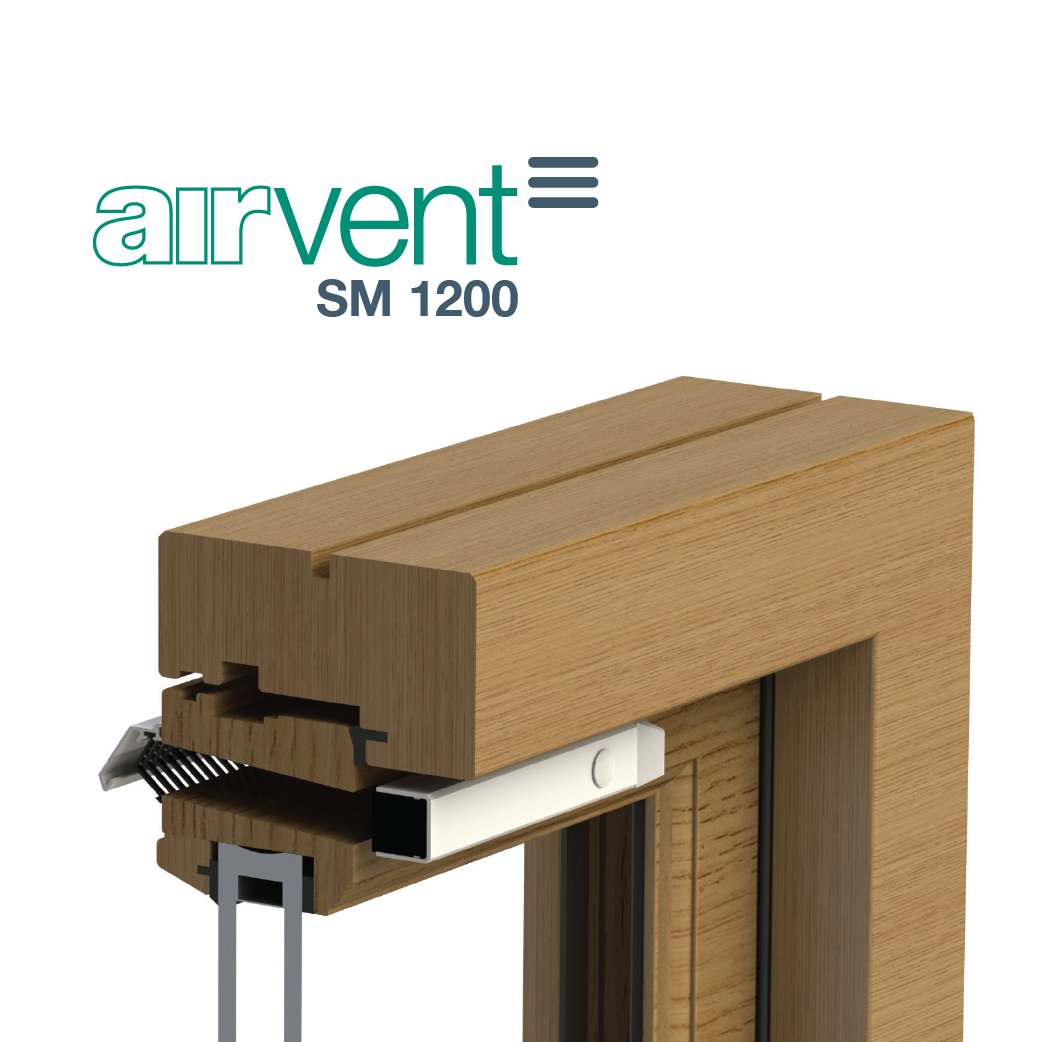

The SM 1200 is a high performance surface mounted window vent that achieves a sound reduction of up to 43 db Dnt Rw in the closed position.
Complete with the unique Brookvent double action close position and a high performance thermal foam seal, the SM 1200 ensures the ultimate in comfort control for the end user. Core features include:
- Manual control
- Thermal foam seal (excl. slot trickle and gas option)
- Insect grill
- Aluminium construction
- Double action close position
- Polyester powder coated
- 10 year guarantee
The SM 1200 is available in a wide range of sizes, colours and control options to suit your specific project needs.
COLOURS
| White (HIPCA) "Satin" | Brown RAL 8017 "Satin" |
| Black (RAL 9005 "Satin" | Oak RAL 8003 "Satin" |
| Mill Finish | Bespoke Colours and Finishes Available |
Choose from our stocked off-the-shelf range or indeed create something a little more bespoke.
- Readymade and bespoke sizes
- Bar length
- Fully controllable ventilation
- Upward deflecting slot trickle
- Gas regulation vent
Under normal conditions the airvent SM 1200 achieved the following Sound Reduction results:
| POSITION | ACOUSTIC DETAIL |
|---|
| OPEN | Up to 32 db Dnt Rw |
| CLOSED | Up to 43 db Dnt Rw |
| OPEN | Up to 30 db Dne W |
| CLOSED | Up to 47 db Dne W |
| Acoustic test data available upon request |
Materials
- Vent and hood: Extruded aluminium
- End caps: uPVC (UV Stable)
- Paint: Polyester powder coated
Standards
- Fully complies with Building Regulations for UK & Ireland
- Tested in accordance with BS EN 13141-1:2004 (air-flow, air-leakage and weather tightness)
Guarantee
