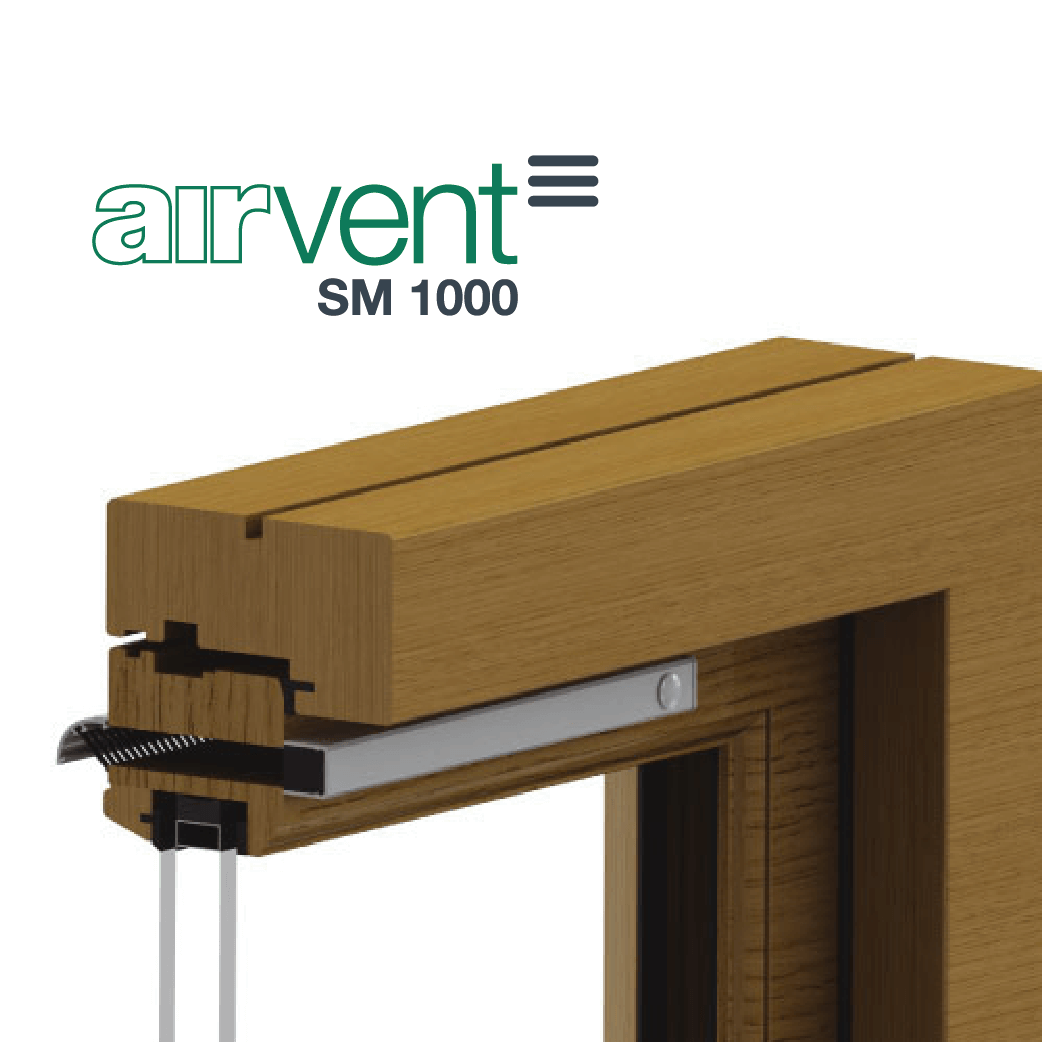

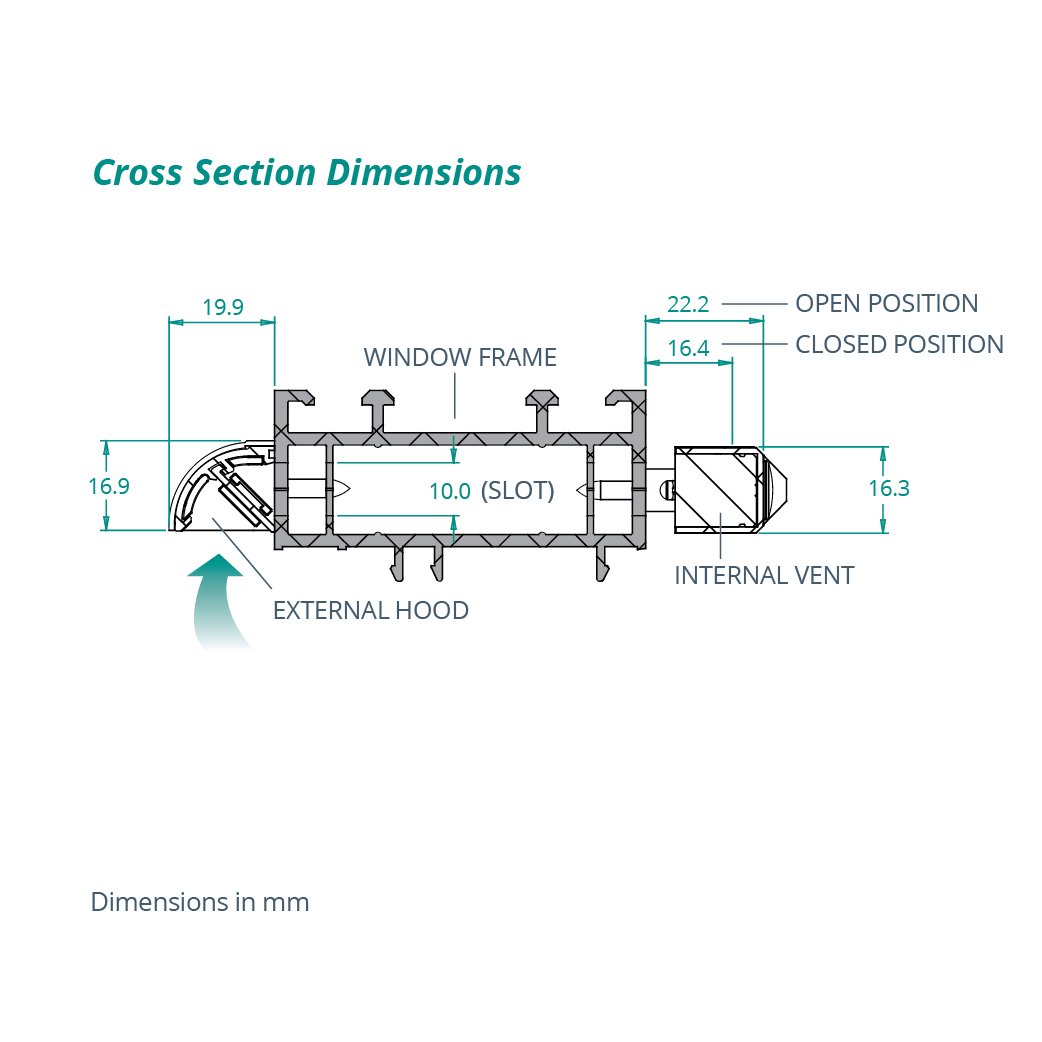

The SM 1000 trickle vent, with its 10mm slot size and sleek, rounded external hood is the perfect slim line surface mounted window vent solution. Complete with the unique Brookvent double action close position and a high performance thermal foam seal, the SM 1000 ensures the ultimate in comfort control for the end user. Core features include:
- Manual controls
- Thermal foam seal
- Insect grille
- Aluminium construction
- Double-action close position
- Polyester powder coated
- 10 year guarantee
The SM 1000 is available in a wide range of sizes, colours and options to suit your specific project needs.
COLOURS
| White (HIPCA) "Satin" | Brown RAL 8017 "Satin" |
| Black (RAL 9005 "Satin" | Oak RAL 8003 "Satin" |
| Mill Finish | Bespoke Colours and Finishes Available |
Choose from our stocked off-the-shelf range or create something a little more bespoke.
- Readymade and bespoke sizes
- Bar length
- Fully controllable ventilation
- Upward deflecting slot trickle
- Gas regulation vent
Acoustics
Under normal conditions the airvent SM 1000 achieved the following Sound Reduction results:
| POSITION | ACOUSTIC DETAIL |
|---|
| OPEN | Up to 32 db Dnt Rw |
| CLOSED | Up to 43 db Dnt Rw |
| OPEN | Up to 29 db Dne W |
| CLOSED | Up to 40 db Dne W |
| Acoustic test data available upon request |
Materials
- Vent and hood: Extruded aluminium
- End caps: uPVC (UV Stable)
- Paint: Polyester powder coated
Standards
- Fully complies with Building Regulations for UK & Ireland
- Tested in accordance with BS EN 13141-1:2004 (air-flow, air-leakage and weather tightness).
Guarantee
10 Years
