airvent SM 1000+ Trickle Ventilation

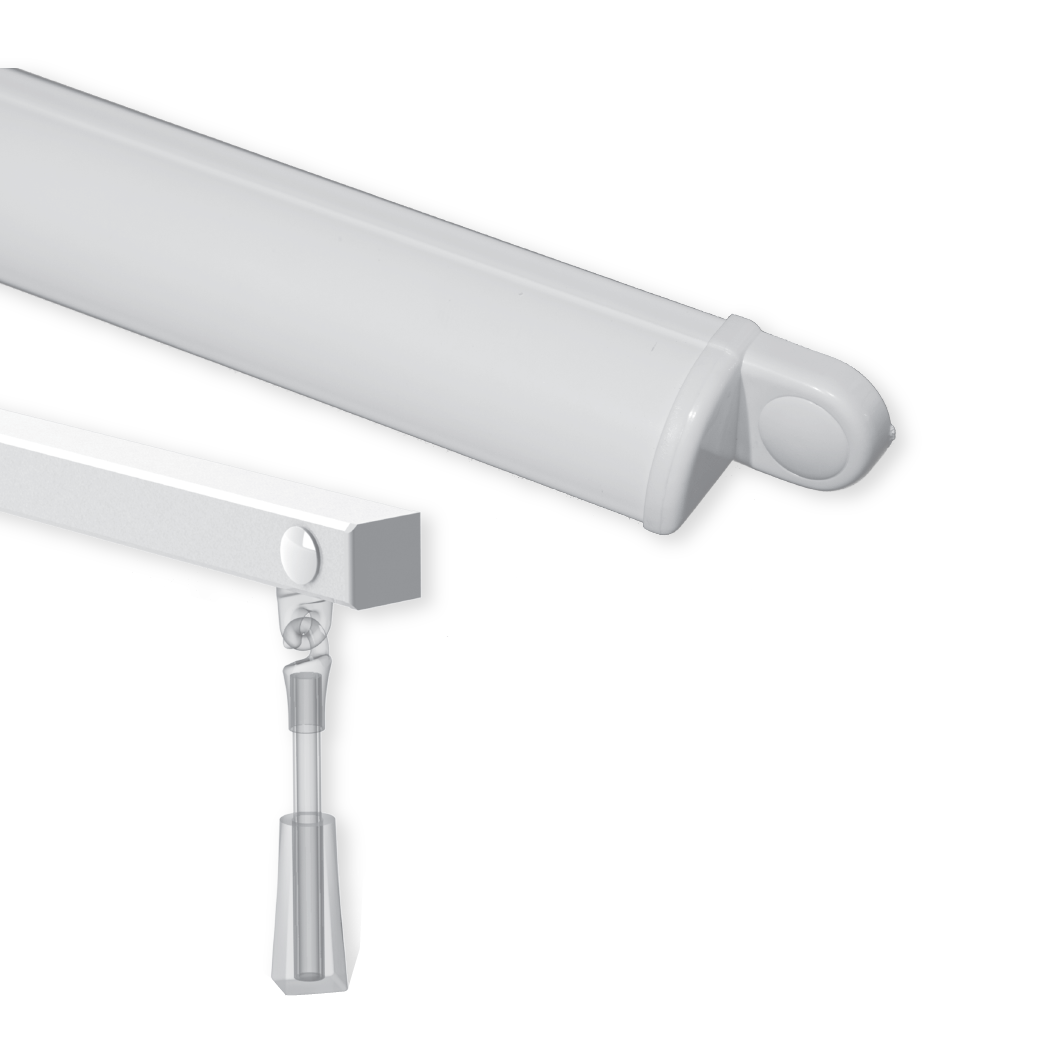

The SM 1000+ is a trickle vent with all the same great features of the SM 1000 – including slimline design, built-in insect grille and simple installation – but also comes with the added benefit of rod control operation. This makes the vent even easier to use.
Your SM 1000+ can be mounted on your existing windows and made to your exact specifications, including a range of different colours, so it will fit seamlessly into your space. You can even choose which side of the vent to have your rod control for easy access and to suit your design preferences.
The SM 1000+ combines all the great benefits of the SM 1000 with a rod control operation that complies with Part F & Part N (Building Regulations: England & Wales) ensuring control access and ease of operation for the end user. Core features include:
- Rod control (left or right hand)
- Thermal foam seal (excl. slot trickle)
- Insect grill
- Double-action close position
- Polyester powder coated
- 10 year guarantee
The SM 1000+ is available in a wide range of sizes, colours and control options to suit your specific project needs.
COLOURS
| White (HIPCA) "Satin" | Brown RAL 8017 "Satin" |
| Black (RAL 9005 "Satin" | Oak RAL 8003 "Satin" |
| Mill Finish | Bespoke Colours and Finishes Available |
Choose from our stocked off-the-shelf range or indeed create something a little more bespoke.
- Readymade and bespoke sizes
- Fully controllable ventilation
- Upward deflecting slot trickle
- Rod length at 300mm / 600mm / 900mm

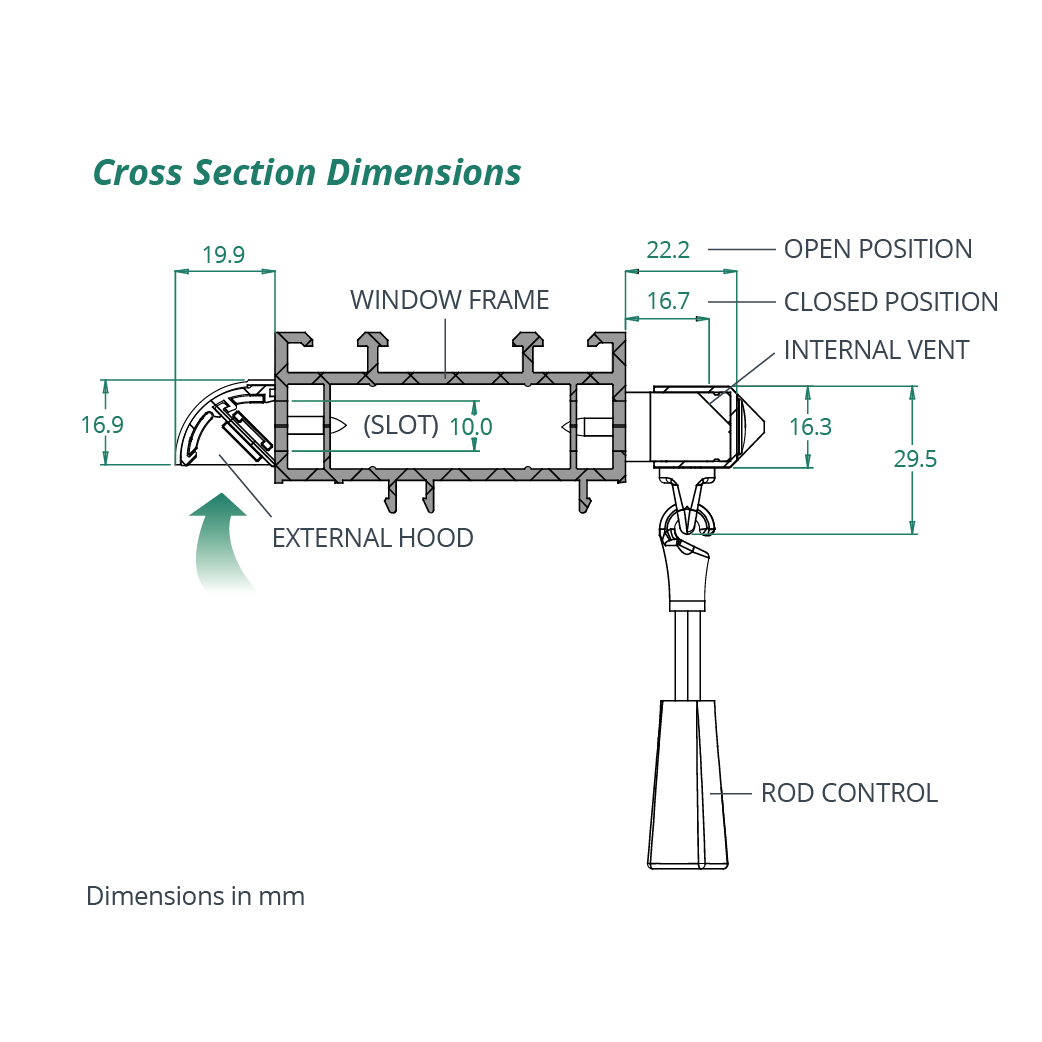

Equivalent modular sizes
| Equivalent Area | Geometric Open Area | Overall Slot Size | Overall Vent Length | Overall Hood Length |
|---|---|---|---|---|
| 2500mm² | 3450mm² | 10mm x 345mm | 420mm | 390mm |
| 3000mm² | 4150mm² | 10mm x 415mm | 490mm | 460mm |
| 3500mm² | 4850mm² | 10mm x 485mm | 560mm | 530mm |
| 4000mm² | 5550mm² | 10mm x 555mm | 630mm | 600mm |
Acoustics
Under normal conditions the airvent SM 1000+ achieved the following Sound Reduction results:
| POSITION | ACOUSTIC DETAIL |
|---|---|
| OPEN | Up to 32 db Dnt Rw |
| CLOSED | Up to 43 db Dnt Rw |
| OPEN | Up to 29 db Dne W |
| CLOSED | Up to 40 db Dne W |
| Acoustic test data available upon request | |
Materials
- Vent and hood: Extruded aluminium
- End caps: uPVC (UV Stable)
- Paint: Polyester powder coated
Standards
- Fully complies with Building Regulations for UK & Ireland
- Tested in accordance with BS EN 13141-1:2004 (air-flow, air-leakage and weather tightness)
Guarantee
- 10 years
