Brookvent’s Airstream Xe+ is a discreet intermittent decentralised mechanical ventilation unit, or dMEV – a low energy fan designed to keep your air clean and fresh. Suitable both for new builds and for retrofitting into refurbishment projects, the Airstream Xe+ features a modern and aesthetically pleasing front flat cover, ideal for interior design concerns. This is easily removed for cleaning, without the need of tools. Aerodynamic deflectors on the housing ensure quiet function, reducing air turbulence and maximising airflow.
airstream 1.1 E
- Efficient and quiet, the Brookvent airstream 1.1. E is a continuous mechanical extract ventilation (MEV) unit. With duct connections to each wetroom, it is versatile, and allows for wall, ceiling or floor mount options for the best finish and efficacy. Maintenance free and with a local boost facility, this Brookvent 1.1 MEV unit is quieter and more efficient at removing the stale air from bathrooms and wetrooms, and supplying fresh, clean air.
From $61.60
- Low specific fan power – down to 0.6 W/I/s
- 5 Versatile duct connections
- Quiet operation
- Wall, ceiling or floor mount options
- Local boost Facility
- Maintenance Free

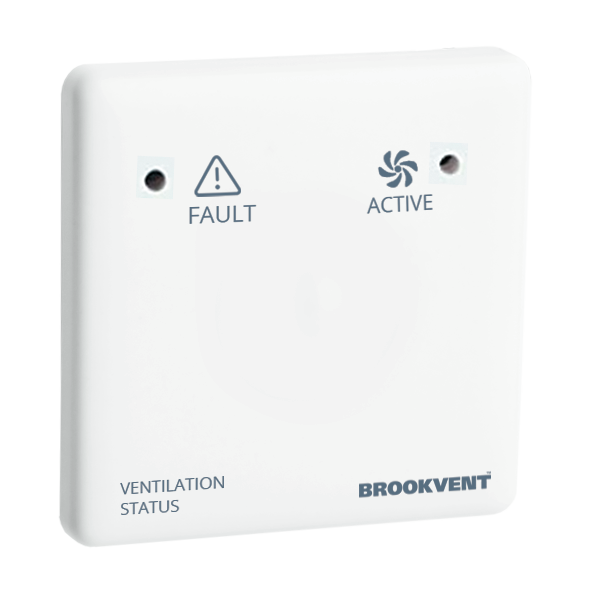

- Brookvent Control Indicator – Part F compliant
SAP APPENDIX Q RESULTS
| Configuration | Specific Fan Power (W/l/s) |
|---|---|
| Kitchen + 1 wet room | 0.17 |
| Kitchen + 2 wet rooms | 0.16 |
| Kitchen + 3 wet rooms | 0.17 |
| Kitchen + 4 wet rooms | 0.18 |
| Kitchen + 5 wet rooms | 0.22 |
| Kitchen + 6 wet rooms | 0.24 |
ACOUSTIC PERFORMANCE
| Performance to BS 848 Pt 1 in free air: | Consumption (W) | Sound Pressure Level @ 3m dB (A) | ||||||
|---|---|---|---|---|---|---|---|---|
| Max | Boost | Trickle | Max | Boost | Trickle | Max | Boost | Trickle |
| 129 | 80* | 51 | 37.6 | 11* | 4.9* | 34 | 34* | 9* |
| * Factory settings for tricle and boost speeds. Medium speed for the unit will be the mid-point between selected trickle and boost speeds. | ||||||||

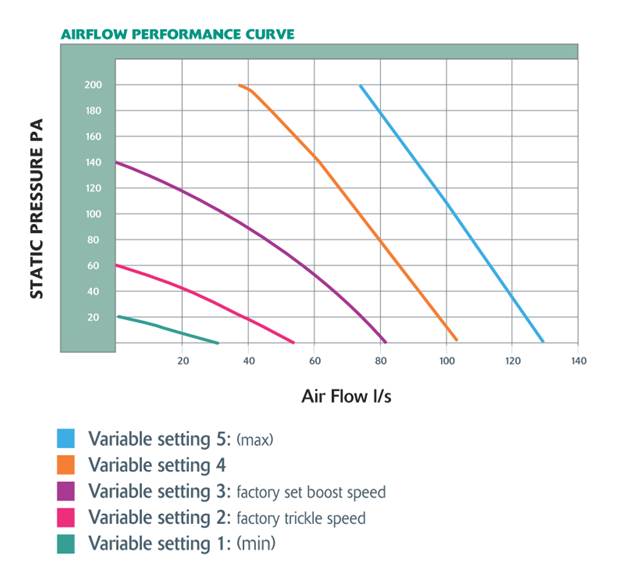

AIRFLOW PERFORMANCE CURVE
Weight
3.8kg
Materials
Main enclosure: High grade polypropylene
Electrical
- 230V ~ 50Hz Class II
- EC low energy fan
- Supplied with a flying lead
Controls
- Efficient in-built control board (SAP Q approved)
- Potentiometer control, Independent Fan Speed Control (Trickle and boost settings for each fan)
- Single 230V boost input (Compatible with Light switch relay, humidistat, PIR etc.)
Standards
- Fully complies with Building Regulations for UK & Ireland | SAP Q Approved
- Energy Savings Trust Best Practice, CE, ISO 9001
SPF
Down to 0.16 W/l/s
Guarantee
2 Years
Product Code
AS 92-01-01-E-01
