Aircycle 4.1 Digital Range House Ventilation System

The Brookvent Aircycle 4.1 Digital Range House Ventilation System is suitable for medium to large dwellings and apartments, with an area of up to 285m².

With unrivalled performance, the 4.1 offers up to 93% heat recovery efficiency, pulling the heat out of your ‘wet’ rooms (such as kitchens and bathrooms) to heat fresh air which it then supplies to the other rooms throughout your home.

Key features include a down to 0.43 W/l/s specific fan power, remote digital control with status indication (sold separately), a programmable 25% boost setting, versatile wall and floor mount options, and 4 100% variable Airflow modes (Night, General, Boost, and Purge), the Aircycle 4.1 is the first word in efficient, reliable heat recovery ventilation.

The user-friendly remote digital interface allows for enhanced controllability, for bespoke commissioning to suit all projects and individual needs, and maintains setting adjustment and flexibility for the end user (within commissioned parameters).

Product Brochure
Enquire About This Product

From $223.30

Clear
SKU: N/A

The new aircycle 4.1 Heat Recovery Ventilation system HRV comes with award winning technology, unrivalled performance and versatile installation.

With a Specific Fan Power (SFP) down to 0.43 W/l/s and a heat recovery efficiency up to 93% the aircycle 4.1 succeeds in balancing the trade-off between airflow, efficiency and acoustic performance, offering a system that delivers true comfort ventilation for the end user.

Core features include:

  • Up to 93% heat recovery efficiency
  • Down to 0.43 W/l/s specific fan power
  • 4 Airflow modes (100% variable): Night, General, Boost, Purge
  • Programmable 25%+ boost setting
  • Remote digital control – sold seperately
  • Status & airflow mode Indication
  • Fault alert
  • Hours run meter
  • 230V Auto-boost compatible
  • Integral humidistat
  • Automated frost protection
  • Automatic Summer bypass, 100%

SAP Appendix Q: Listed Results

Airflow Performance Curve

Weight

29kg

Guarantee Period

5 Years

Materials

  • Main enclosure: High density, impact resistant EPP (Expanded Polypropylene)
  • PCB & control panel enclosure: ABS FR
  • Filters: Polyester media (G3)
  • Mounting bracket: Zinc plated steel
  • Fan Scrolls: ABS

Digital Control Features:

  • Independent fan speed control,
  • 230V Boost input (light switch relay, PIR, boost switch etc.)
  • Boost over-run timer (0- 99 mins)
  • Integral humidity sensor (Boost activation) – 100% Variable RH
  • Automatic frost protection
  • Automatic Summer Bypass (100% Filtered)
  • 4 Airflow modes (100% variable): Night, Trickle, Boost, Purge
  • Smart filter maintenance alert
  • Fault alert
  • Status indication (Summer bypass, frost protection etc.)
  • PIN Protect engineering settings
  • Hours run meter
  • Commissioning Settings Upload

Standards

  • Fully complies with Building Regulations for UK & Ireland
  • SAP Appendix Q Listed | DEAP Listed | Energy Savings Trust Best Practice | CE
Product DescriptionProduct Code
Wall Mount - Aircycle 4.1 c/w Integral Humidistat & BypassAS 90-0401-WDS-01
Floor Mount - Aircycle 4.1 c/w Integral Humidistat & BypassAS 90-0401-FDS-01
Digital ControllerAM 90-02-301

Related Products

  • aircycle ONE

    aircycle ONE Single Room Heat Recovery

    Improve indoor quality with the Brookvent Aircycle ONE Single Room Heat Recovery System. This ultra quiet unit offers all the benefits of heat recovery, with the added benefits of being suitable for retrofit applications and for single room usage rather than household-wide.

    With very low running costs (costing around £5 GBP annually for continuous operation on slow speed), the Aircycle ONE will ensure the removal of indoor pollutants and prevent condensation and mould in your room, ensuring a healthier and more comfortable environment for all inhabitants.

    This continuously running, low-energy alternate flow supply and extract fan, with heat recovery, is perfect for usage in habitable areas including your bedrooms, living rooms, dining rooms, basements, and hallways. An energy-efficient integral regenerative heat exchanger, it offers up to 82% efficiency and a unique, flat front cover for modern interior design and ease of cleaning.

  • AC-3.1-with-digital-controller-768×768

    Aircycle 3.1 Digital Range

    The Brookvent Aircycle 3.1 Digital range is the perfect choice of heat recovery ventilation system for medium to larger dwellings and apartments.

    The Aircycle 3.1 Digital heat recovery ventilation system extracts the heat from your wet rooms such as bathrooms and kitchens, and infuses this heat into the fresh air, allowing for healthier, more comfortable conditions inside your residence for all inhabitants.

    Offering up to 65 l/s at 150 Pa max airflow, down to 0.42 W/l/s specific fan power, a programmable 25% boost setting and 4 Airflow modes (Night, General, Boost, and Purge), amongst other benefits, this versatile system (it can be wall, ceiling or floor mounted) also offers up to 92% heat recovery efficiency- making it quite simply the best in its class. A remote digital control with status indication (sold separately) offers enhanced controllability packaged in a user-friendly interface, allowing for bespoke commissioning to fit each project.

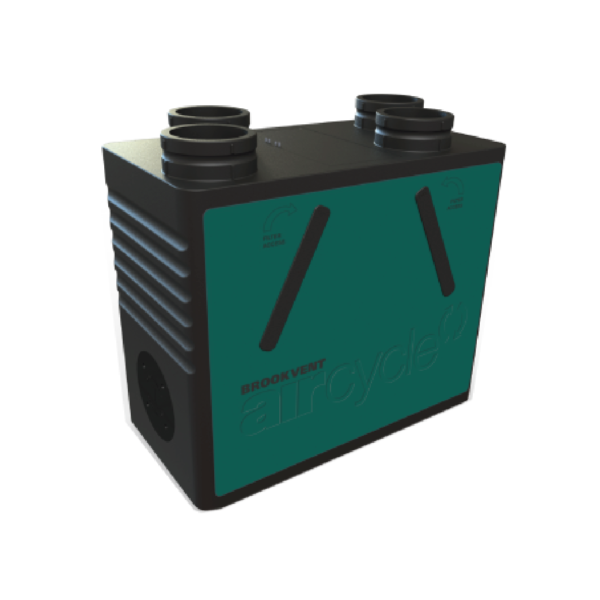

  • aircycle 1.2 HRV system
