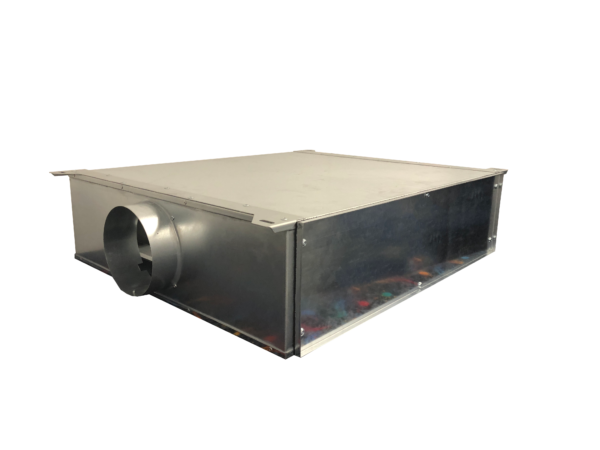

The Brookvent NOX100 is a clean air solution which is designed to work perfectly, hand-in-hand, with Mechanical Ventilation Heat Recovery (MVHR) or Mechanical Extract Ventilation (MEV) units. The NOX has been specifically designed to filter out harmful nitrogen dioxide and particulates from the outdoor air, when these locations contain nitrogen dioxide and particulates at over the target levels. This nitrogen dioxide mitigation solution works to filter polluted air upon entry, in both domestic and commercial buildings. A compact system, the NOX100 makes air cleaner and safer to breathe.

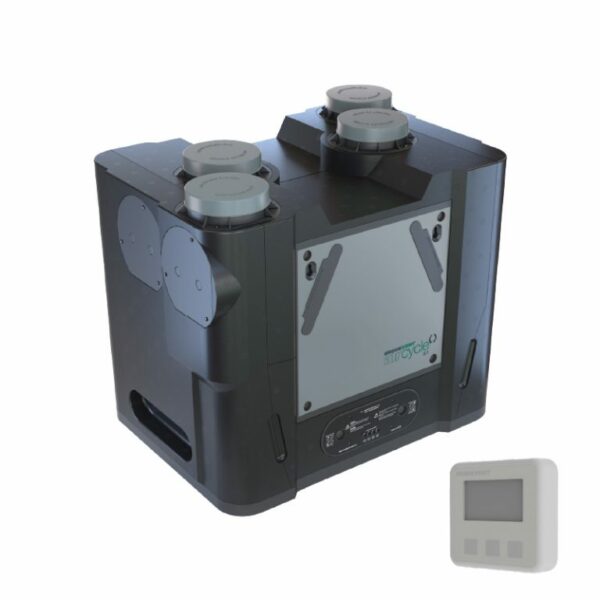

Aircycle 3.1 Heat Recovery Ventilation System

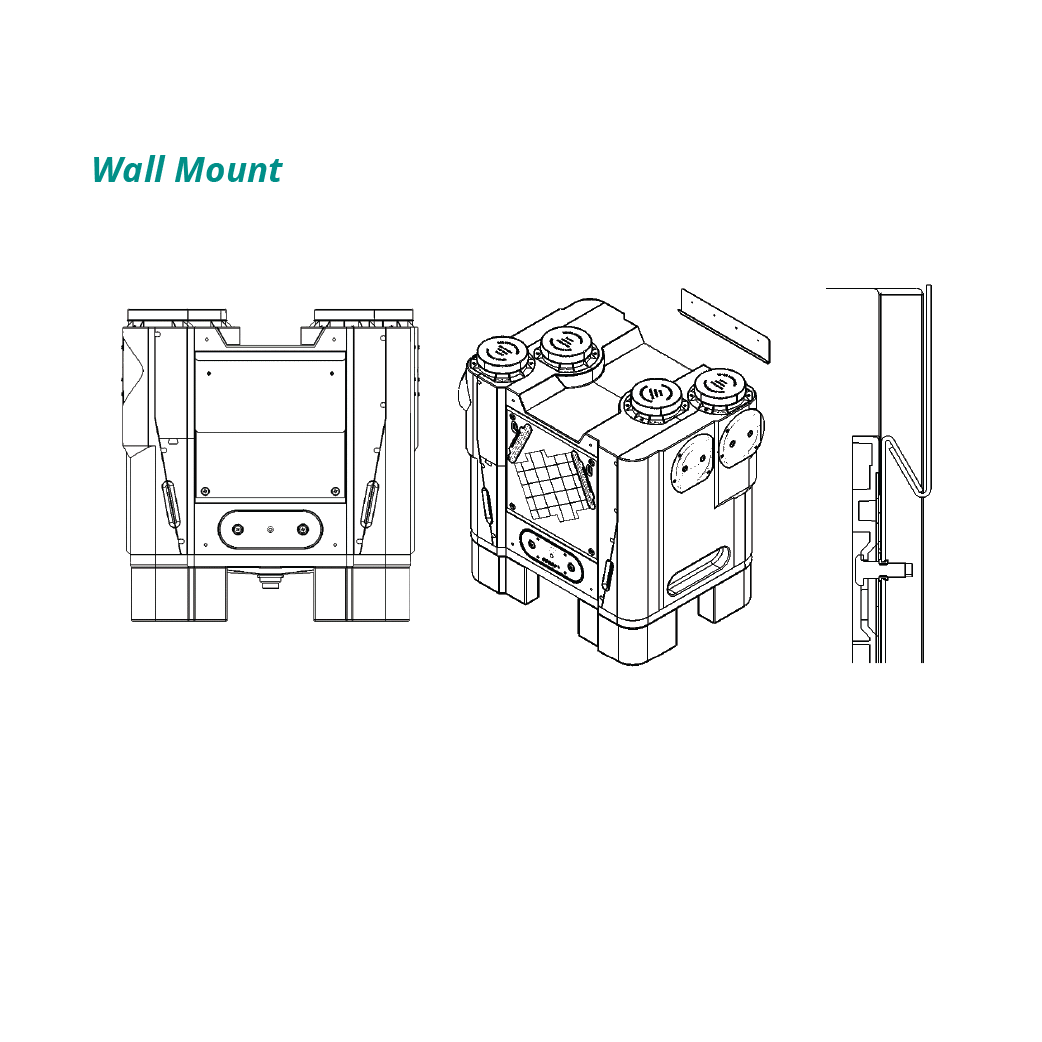

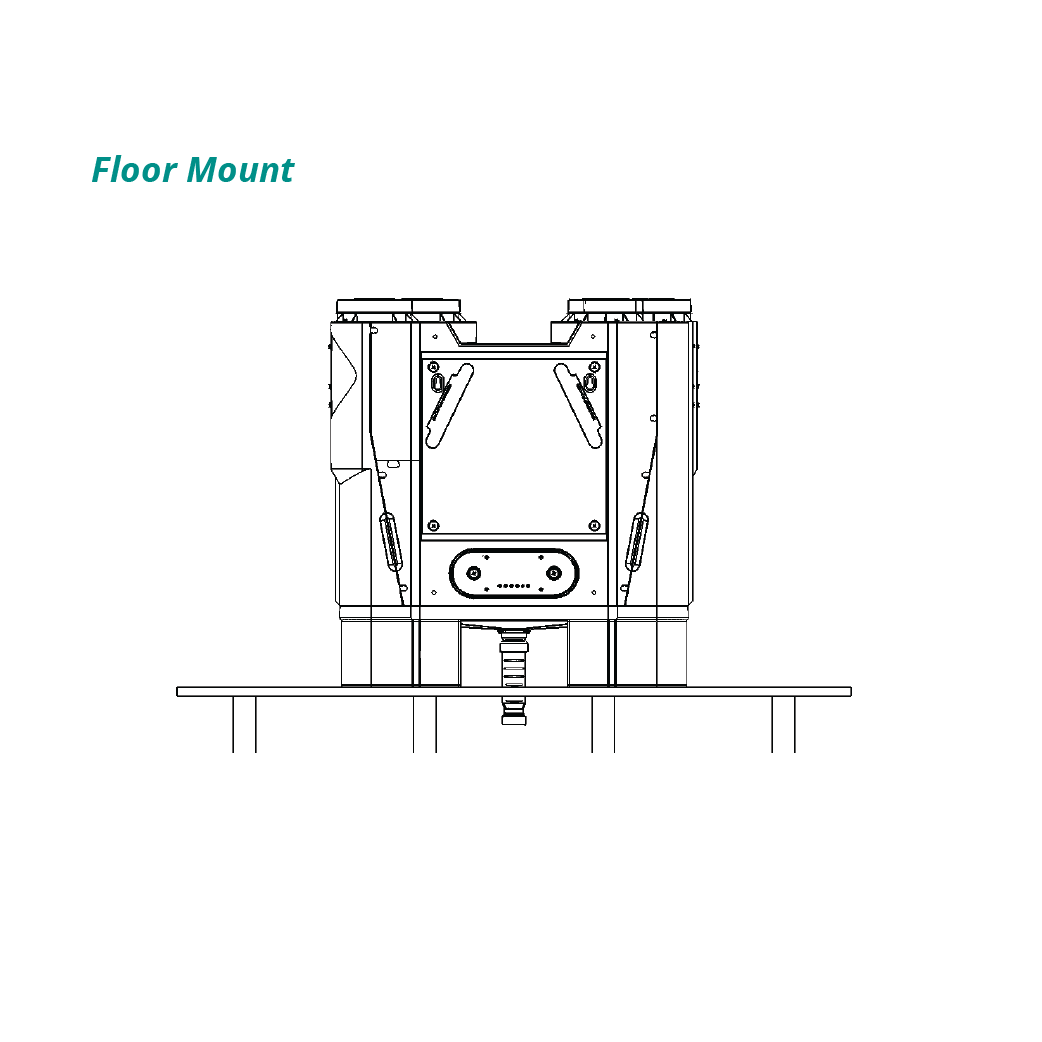

The Brookvent Aircycle 3.1 heat recovery ventilation system offers unrivalled performance for medium to large apartments and dwellings. Versatile, it is offered with wall or floor mount options, including side or top duct connections, for ease of citing.
Pulling heat from the warm air in your wet rooms, such as kitchens and bathrooms, the Aircycle 3.1 then uses this heat to warm fresh air, and distribute this through the habitable rooms of your home. This mode of heating can significantly reduce the space heating demand of your home, whilst also delivering a healthier and more comfortable indoor environment for everybody living there.
The Aircycle 3.1 offers down to 0.37 W/l/s specific fan power, 100% variable fan speed control, easy access air filters, potentiometer or digital control models and many other features.
With 93% heat recovery efficiency, the Aircycle 3.1 is quite simply the most efficient heat recovery ventilation system in its class.
$2,409.00

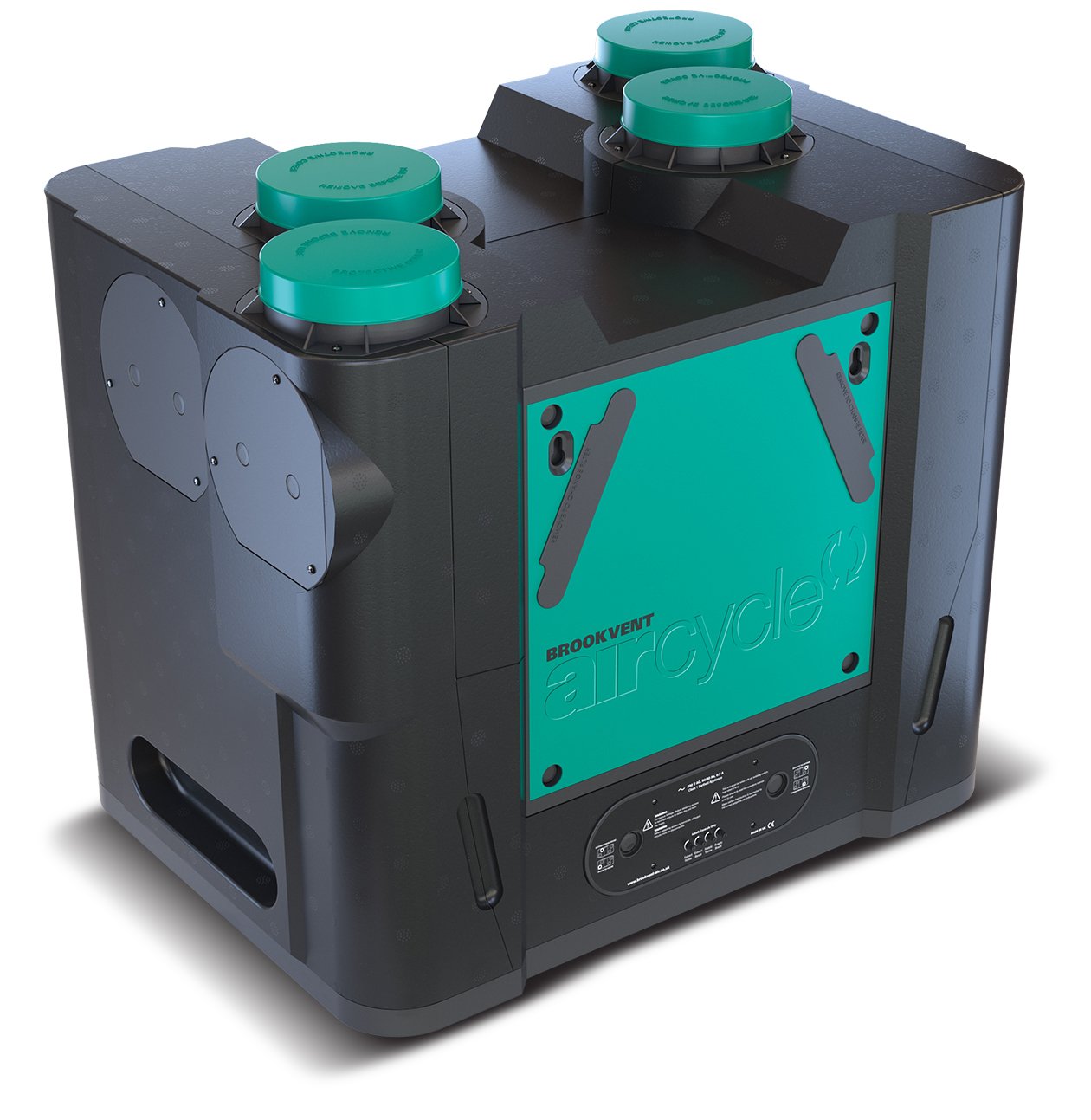

The new aircycle 3.1 Heat Recovery Ventilation system HRV comes with award winning technology, unrivalled performance and versatile installation.
With a Specific Fan Power (SFP) down to 0.37 W/l/s and a heat recovery efficiency up to 93% the aircycle 3.1 succeeds in balancing the trade-off between airflow, efficiency and acoustic performance, offering a system that delivers true comfort ventilation for the end user. Core features include:
- Up to 93% heat recovery efficiency
- Down to 0.37 W/l/s specific fan power
- 100% variable fan speed control
- Independent fan speed control
- 230v auto-boost integration
- Variable boost over-run timer
- Tempering summer bypass
- Integral humidistat
- Automated frost protection
- Top and side duct connections
- On-site invert capability
- Easy access air filters (G2 up to G4)
- 5 year guarantee

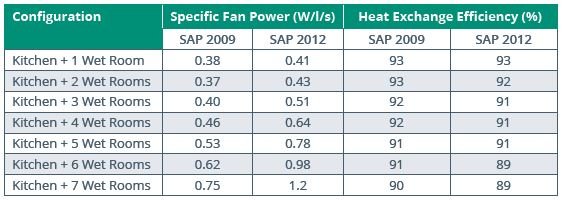

SAP Appendix Q: Listed Results

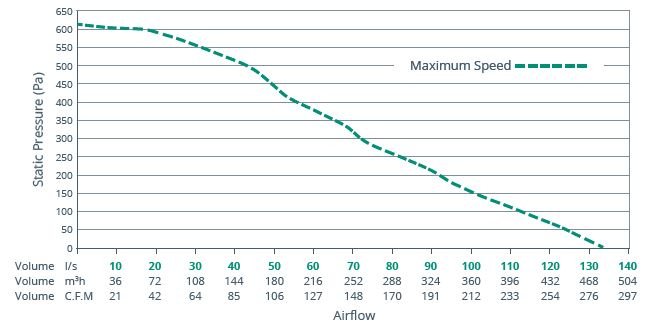

Airflow Performance Curve
Weight
29kg
Materials
- Main enclosure: High density, impact resistant EPP (Expanded Polypropylene)
- PCB & control panel enclosure: ABS FR
- Drainage tray: PP
- Filters: Polyester media (G2 up to G4)
- Mounting bracket: Zinc plated steel
- Fan Scrolls: ABS
Electrical
- 230V EC low energy, backward curved centrifugal fans
- PCB c/w potentiometer control
- Supplied complete with 4 core flying lead: (Live: Brown), (Neutral: Black), (Earth: Yellow & Green), (230v Switched Live (Boost): Grey)
- Plug and play components for easy maintenance
Controls
- Independent fan speed control (Trickle and boost settings for each fan)
- Single 230V boost input (Light switch, humidistat, PIR etc.)
- Efficient in-built control board (SAP Q approved)
- Boost over-run timer, adjustable between 0-15min.
- In-built humidity sensor (Boost activation) Variable: 60% – 100% RH, Factory set: 70%
- Frost protection, factory set: 5 Degrees Cel.
- Tempering summer bypass (Automatic variation between 20-27 Degrees Cel.) – Optional
Standards
- Fully complies with Building Regulations for UK & Ireland
- SAP Appendix Q Listed | Energy Savings Trust Best Practice | CE
SPF
Down to 0.37 W/l/s
Efficiency
Up to 93%
Guarantee
5 Years
Product Codes
- Aircycle 3.1 c/w Integral Humidistat AS 90-0301-WIN-01
- Aircycle 3.1 c/w Integral Humidistat & Summer Bypass AS 90-0301-WINS-01
