Sale!
Aircycle 1.3 Digital Range
Aircycle 1.3 Digital Range - Image 2
Aircycle 1.3 Digital Range - Image 3
Aircycle 1.3 Digital Range - Image 4
Aircycle 1.3 Digital Range - Image 5

Aircycle 1.3 Digital Range

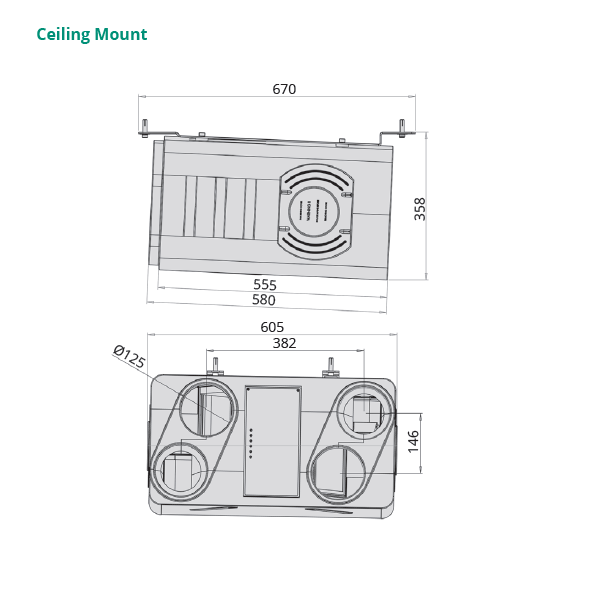

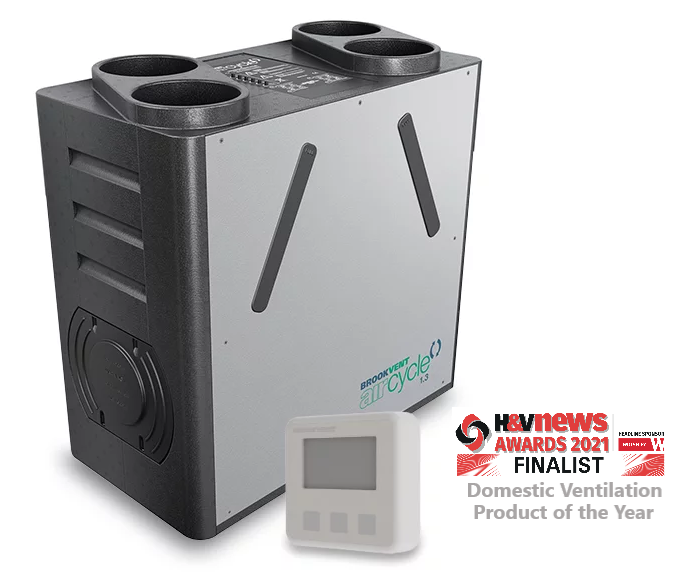

The Brookvent Digital Aircycle 1.3 heat recovery ventilation system is highly versatile, as it can be wall, ceiling or floor mounted, perfect for the constraints of small to medium apartments and domestic properties.

Quiet and efficient, the digital Aircycle 1.3 takes the heat from wet rooms, such as your kitchen or bathroom, and recycles that heat. The heat is then infused into fresh air and dispersed around the other rooms of your home, making your house so much healthier and more comfortable for everyone who lives there.

Core features include up to 65 l/s at 150 Pa max airflow and up to 92% heat recovery efficiency. With remote digital control (with status indication, sold separately), and 4 Airflow modes – Night, General, Boost, and Purge, the system is reliable, efficient, and versatile. A five-year manufacturers’ guarantee shows that reliability is paramount.

Product Brochure
Enquire About This Product

From $154.99

Clear
SKU: AM-90-02-229-1-1

The new aircycle 1.3 Heat Recovery Ventilation HRV range offers versatility without compromising on efficiency, specific fan power or airflow performance.

With a Specific Fan Power (SFP) down to 0.42 W/l/s and a heat recovery efficiency up to 92% the aircycle 1.3 features a streamlined, low-turbulence airflow path design coupled with state of the art EC fan technology. This ensures the aircycle 1.3 range has one of the lowest power consumptions (W) per volume of air (l/s) outputs in its class and sets a new standard in HRV system efficiency.

Core features include:

  • Up to 92% heat recovery efficiency
  • Down to 0.42 W/l/s specific fan power
  • 4 Airflow modes (100% variable): Night, General, Boost, Purge
  • Programmable 25%+ boost setting
  • Remote digital control – Sold Seperately
  • Status & airflow mode Indication
  • Filter maintenance alert
  • Fault alert
  • Hours run meter
  • 230V Auto-boost compatible
  • Integral humidistat
  • Automated frost protection
  • Automatic Summer bypass, 100% filtered
  • Variable boost over-run timer

SAP Appendix Q: Listed Results

Airflow: Pressure / Performance Curve

Weight

11kg

Guarantee Period: 5 Years

SPF

Range down to 0.42 W/l/s

Efficiency

Range up to 92%

Materials:

  • Main enclosure: High density,
    impact resistant EPP (Expanded Polypropylene)
  • PCB & control panel enclosure: ABS FR
  • Filters: Polyester media (G3)
  • Filter cover: Rubber
  • Mounting Bracket: Zinc Plated Steel
  • Fan Scrolls: ABS
  • Digital Control Enclosure: ABS

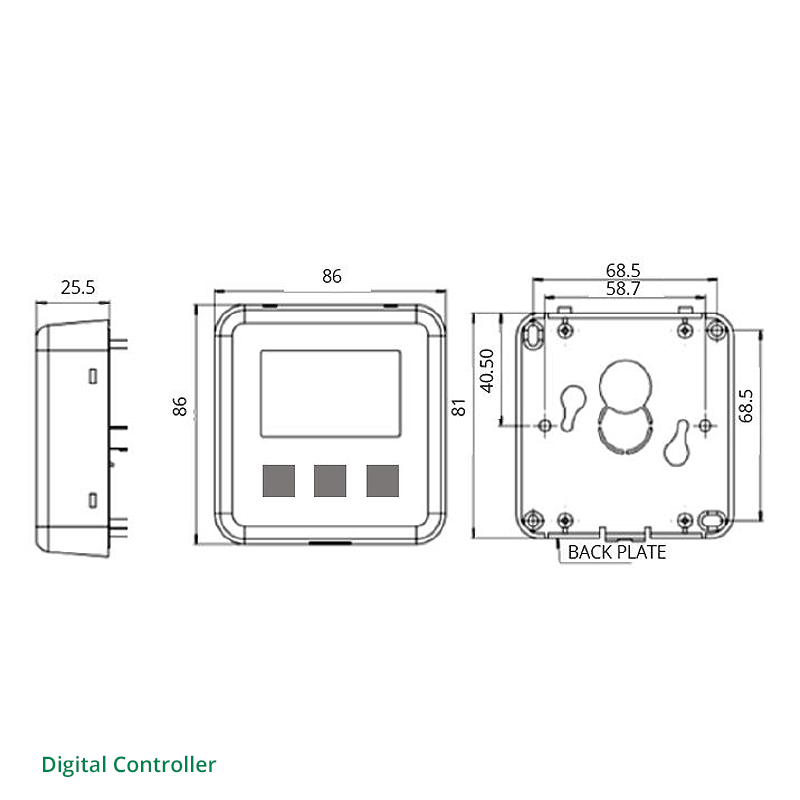

Digital Control Features:

  • Independent fan speed control,
  • 230V Boost input (light switch relay, PIR, boost switch etc.)
  • Boost over-run timer (0- 99 mins)
  • Integral humidity sensor (Boost activation) – 100% Variable RH
  • Automatic frost protection
  • Automatic Summer Bypass
  • (100% Filtered)
  • 4 Airflow modes (100% variable):
  • Night, General, Boost, Purge
  • Remote digital control – sold separately
  • Smart filter maintenance alert
  • Fault alert
  • Status indication (Summer bypass, frost protection etc.)
  • PIN Protect engineering settings
  • Hours run meter
  • Commissioning Settings Upload
  • Statistics display (Temp, humidity etc.)

Standards:

Fully complies with Building Regulations for UK & Ireland

SAP Appendix Q Listed | DEAP Listed | Energy Savings Trust Best Practice | CE

Product Codes:
